ProLine® 30-Gallon Ultra-Low Nox Atmospheric Vent Tall Natural Gas Water Heater

Model GUC-30 400
5 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 18ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';

  • Delivers 62-gallon first hour rating
  • 33,000 BTU input atmospheric vent design delivers up to 0.59 Uniform Energy Factor
  • Ultra-Low NOX Green Choice® Gas Burner, meets or exceeds emission requirements in California & Utah
  • Product Details
    • Delivers 62-gallon first hour rating
    • 33,000 BTU input atmospheric vent design delivers up to 0.59 Uniform Energy Factor
    • Ultra-Low NOX Green Choice® Gas Burner, meets or exceeds emission requirements in California & Utah
    • Push-button piezo ignitor makes lighting pilot fast & easy
    • Intelligent electronic gas control provides precise temperature control and LED status indicator
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • DynaClean™ automatic cleaning system protects against sediment build-up
    • Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Commercial-grade brass drain valve for durable and easy operation
    • 6-year limited tank and parts warranty

    • The ProLine® 30-Gallon Ultra-Low Nox Atmospheric Vent Tall Natural Gas Water Heater delivers an efficient, reliable performance and features an innovative design that protects against accidental ignition of flammable vapors. Featuring a 30-gallon (nominal) tank and a 33,000 BTU gas burner, the GUC-30 Standard Vent delivers a first hour rating of 62 gallons and a recovery rate of 34 gallons per hour. It carries a 6-year limited tank warranty, and meets Ultra-Low NOx emission requirements. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    30 Gallons
    Rated Storage Volume
    29 Gallons
    UEF
    0.59
    Maximum BTUs
    33,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Size
    0.75"
    Emissions
    Ultra-Low NOx
    First Hour Rating
    62 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Height to Gas Valve
    13.25
    Height to T&P
    52.00
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Product Tier
    ProLine®
    Shipping Height
    61.56"
    Shipping Length
    22.63"
    Shipping Width
    17.13"
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    57.75"
    Diameter
    16 in."
    Shipping Weight
    126lbs
    Vent Type
    Atmospheric Vent
    Find a Replacement
    Current Product
    Option 2
    ProLine® 30-Gallon Ultra-Low Nox Atmospheric Vent Tall Natural Gas Water Heater

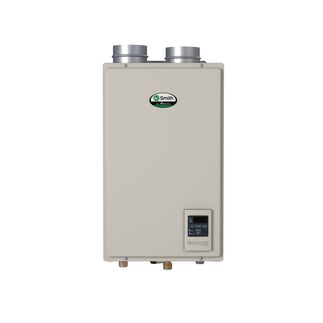

    ProLine® XE Ultra-Low NOx Indoor 120,000 BTU Condensing Natural Gas Tankless Water Heater
    GUC-30
    ATI-140H
    Rebates up to $300 +
    Rebates up to $300 +
    Nominal Capacity
    30 Gallons
    Rated Storage Volume
    29 Gallons
    Diameter
    16 in."
    Width
    13.87"
    Depth
    19.5"
    10.81"
    Height
    57.75"
    22.87"
    Shipping Weight
    126lbs
    53lbs
    Power Source
    GAS
    GAS
    Limited Tank Warranty
    6 Years
    0 Years
    Limited Parts Warranty
    6 Years
    5 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    BOTTOM
    Water Connection Size
    0.75"
    First Hour Rating
    62 Gallons
    Thermal Efficiency
    0%
    0%
