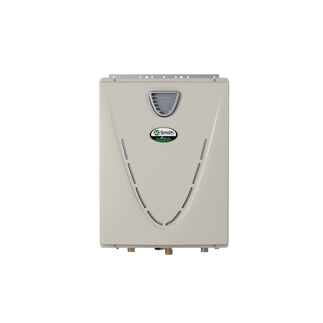

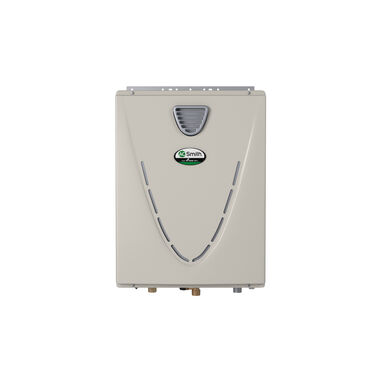

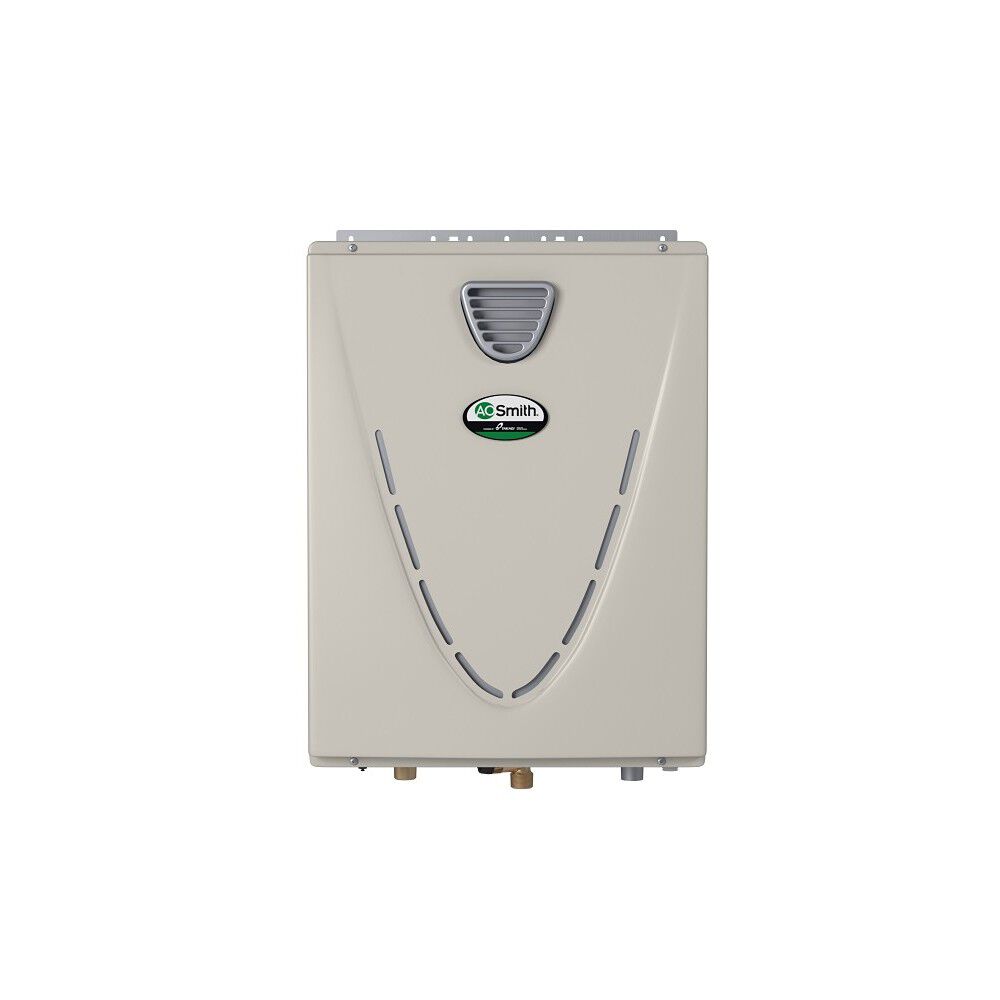

ProLine® XE Ultra-Low NOx Outdoor 180,000 BTU Condensing Natural Gas Tankless Water Heater

Model ATO-340H 100
4 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 61ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Installation Type
Fuel Source
Maximum BTU's

  • Endless Hot Water
  • Continuous flow rate up to 8.0 GPM
  • Primary commercial-grade copper heat exchanger is 25x better than stainless steel at heat transfer, stabilizing outgoing water temperatures quicker
  • What to Expect from this Model
    modal-clock
    Unlimited
    single shower length
    modal-frame
    Unlimited
    back-to-back
    modal-frame
    2.4 showers
    at the same time
    modal-tank-capacity
    Unlimited
    max tub size
    modal-cost
    $198/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    Product Details
    • Endless Hot Water
    • Continuous flow rate up to 8.0 GPM
    • Primary commercial-grade copper heat exchanger is 25x better than stainless steel at heat transfer, stabilizing outgoing water temperatures quicker
    • Secondary heat exchanger is made of 316L Stainless Steel to protect against corrosion
    • Highly efficient condensing Ultra-Low Nox tankless water heater delivers up to .94 Uniform Energy Factor (UEF)
    • Flexible power direct vent design allows for venting up to 100 feet using either PVC, CPVC, polypropylene or ABS Pipe (solid core)
    • Common vent up to 8 units
    • Includes a wall mount temperature remote controller and advanced diagnostics to simplify troubleshooting
    • Safety features include exhaust & water temperature safety control, overheat cut-off fuse and air-fuel ratio (AFR) sensor
    • 15-year limited warranty on heat exchanger in residential applications

    • The 340H Series offers high efficiency Ultra-Low NOx condensing technology allowing for the use of 3” PVC venting and has 0” clearance to combustibles. Features copper primary and 316L stainless steel heat ex-changers to provide high efficiency operation and excellent corrosion resistance. Outdoor models include a remote controller as a standard feature. Indoor models are certified up to 10,100 ft. altitude. Provides a variety of installation options: indoor, outdoor and direct vent. Complies with Ultra-Low NOx regulations and meets the energy efficiency requirements of ASHRAE 90.1b-1992. The ATO-340H-N tankless water heater uses up to 180,000 BTU/hr of natural gas to deliver an endless supply of hot water for a 2.5 bath home in northern climates and up to a 3.5 bath home in southern climates (one shower head per bath). Utilizing condensing technology, this heater is extremely efficient with a Uniform Energy Factor of 0.94. With an industry leading 15-year limited warranty, the ATO-340H-N tankless water heater provides years of hot water through innovation and quality. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    UEF
    0.94
    Maximum BTUs
    180,000
    Power Source
    GAS
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    Water Connection Size
    0.75"
    Emissions
    Ultra-Low NOx
    ASME Certified
    No
    LEED Rating
    1.50
    Destination Country
    US
    Digital Display
    true
    Fuel Source
    NATURAL
    Installation Type
    OUTDOOR
    Limited Heat Exchanger Warranty
    15 Years
    Max Flow Rate
    5.30
    Minimum BTUs
    15,000.00
    Application
    RESIDENTIAL
    Shipping Height
    33.25"
    Shipping Length
    21.75"
    Shipping Width
    15.625"
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    23.625"
    Width
    17.75"
    Shipping Weight
    69lbs
    Vent Type
    Power Direct Vent
    Find a Replacement
    Current Product
    Option 2
    ProLine® XE Ultra-Low NOx Outdoor 180,000 BTU Condensing Natural Gas Tankless Water Heater
    ProLine® XE Ultra-Low NOx Outdoor 199,000 BTU Condensing Natural Gas Tankless Water Heater
    ATO-340H
    ATO-540H
    Rebates up to $300 +
    Rebates up to $300 +
    Width
    17.75"
    17.75"
    Depth
    11.25"
    11.25"
    Height
    23.625"
    23.63"
    Shipping Weight
    69lbs
    69lbs
    Power Source
    GAS
    GAS
    Limited Tank Warranty
    0 Years
    15 Years
    Limited Parts Warranty
    5 Years
    5 Years
    Water Connection Location
    BOTTOM
    BOTTOM
    Water Connection Size
    0.75"
    Thermal Efficiency
    0%
    0%
