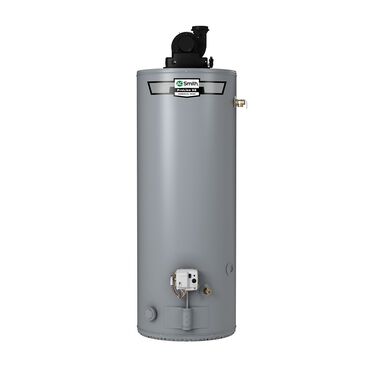

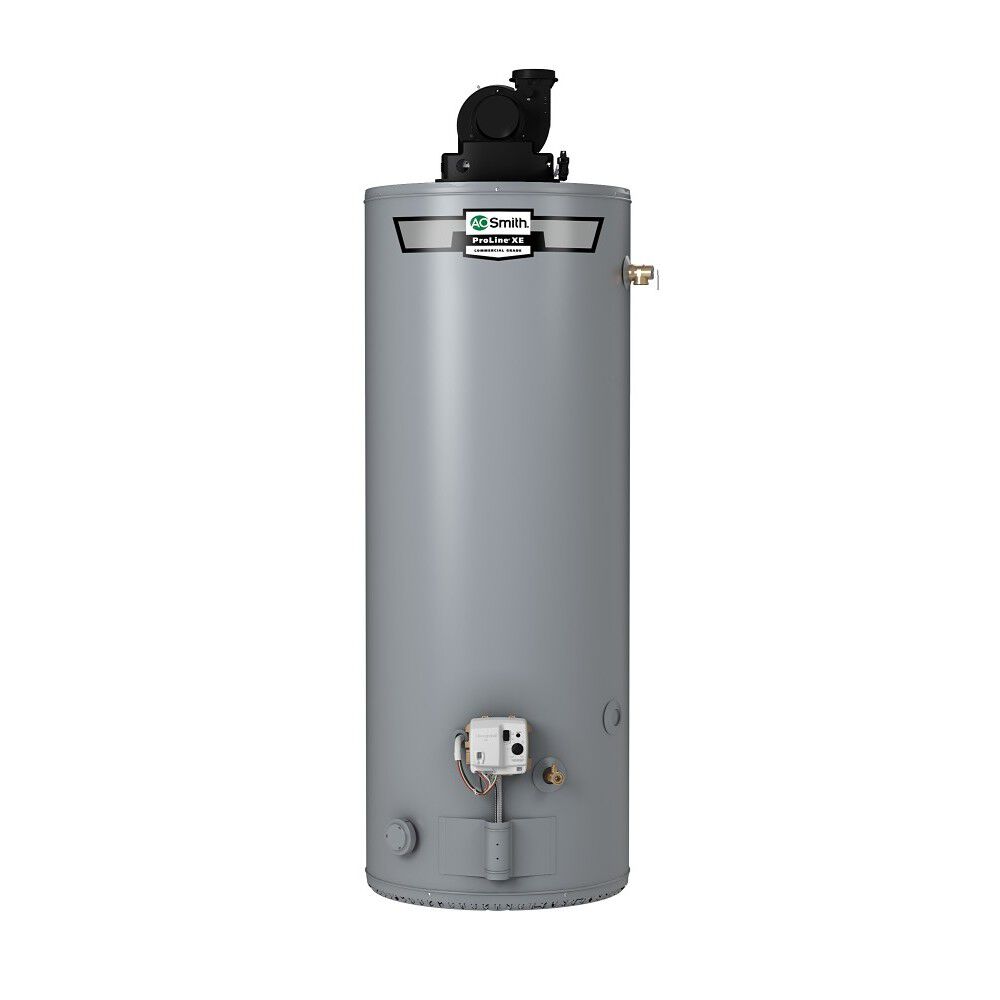

ProLine® XE 40-Gallon Power Vent Natural Gas Water Heater

Model GPVT-40L 200
3.7 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 13ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Fuel Source
Maximum BTU's
Side Loop

  • Delivers 87-gallon first hour rating
  • 50,000 BTU input power vent design delivers up to 0.70 Uniform Energy Factor
  • What to Expect from this Model
    modal-clock
    27.6 minutes
    single shower length
    modal-frame
    3.5 showers
    back-to-back
    modal-frame
    2.5 showers
    at the same time
    modal-tank-capacity
    63 gallons
    max tub size
    modal-cost
    $268/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    Product Details
    • Delivers 87-gallon first hour rating
    • 50,000 BTU input power vent design delivers up to 0.70 Uniform Energy Factor
    • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
    • Automatic pilot relight system shuts reduces gas consumption and eliminates nuisance pilot outages
    • Includes side mounted recirculation taps for easy installation with combination space heating/potable water heating applications
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • DynaClean™ automatic cleaning system protects against sediment build-up
    • Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • 6-year limited tank and parts warranty

    • The ProLine® XE 40-Gallon Power Vent Natural Gas Water Heater is engineered to maximize efficiency while offering greater flexibility in installation options. Featuring a 40-gallon (nominal) tank and a 50,000 BTU gas burner, the GPVT-40L Power Vent delivers a first hour rating of 87 gallons and a recovery rate of 53 gallons per hour. This model features a 0.70 Uniform Energy Factor and carries a 6-year limited warranty. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® XE water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.7
    Maximum BTUs
    50,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Emissions
    Low NOx
    First Hour Rating
    87 Gallons
    ASME Certified
    No
    Amperes
    5
    Blanket Included
    No
    Destination Country
    US
    Digital Display
    true
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Product Tier
    ProLine® XE
    Shipping Height
    71"
    Shipping Length
    29.25"
    Shipping Width
    21.63"
    Side Loop
    Yes
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    59.5"
    Diameter
    20 in."
    Shipping Weight
    176lbs
    Vent Type
    Power Vent
    Find a Replacement
    Current Product
    Option 2
    ProLine® XE 40-Gallon Power Vent Natural Gas Water Heater
    ProLine® XE Ultra-Low NOx Indoor 160,000 BTU Condensing Natural Gas Tankless Water Heater
    GPVT-40L
    ATI-240H
    Rebates up to $300 +
    Rebates up to $300 +
    Nominal Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    Diameter
    20 in."
    Width
    17.75"
    Depth
    27.5"
    11.25"
    Height
    59.5"
    23.63"
    Shipping Weight
    176lbs
    70lbs
    Power Source
    GAS
    GAS
    Limited Tank Warranty
    6 Years
    0 Years
    Limited Parts Warranty
    6 Years
    5 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    BOTTOM
    First Hour Rating
    87 Gallons
    Thermal Efficiency
    0%
    0%
