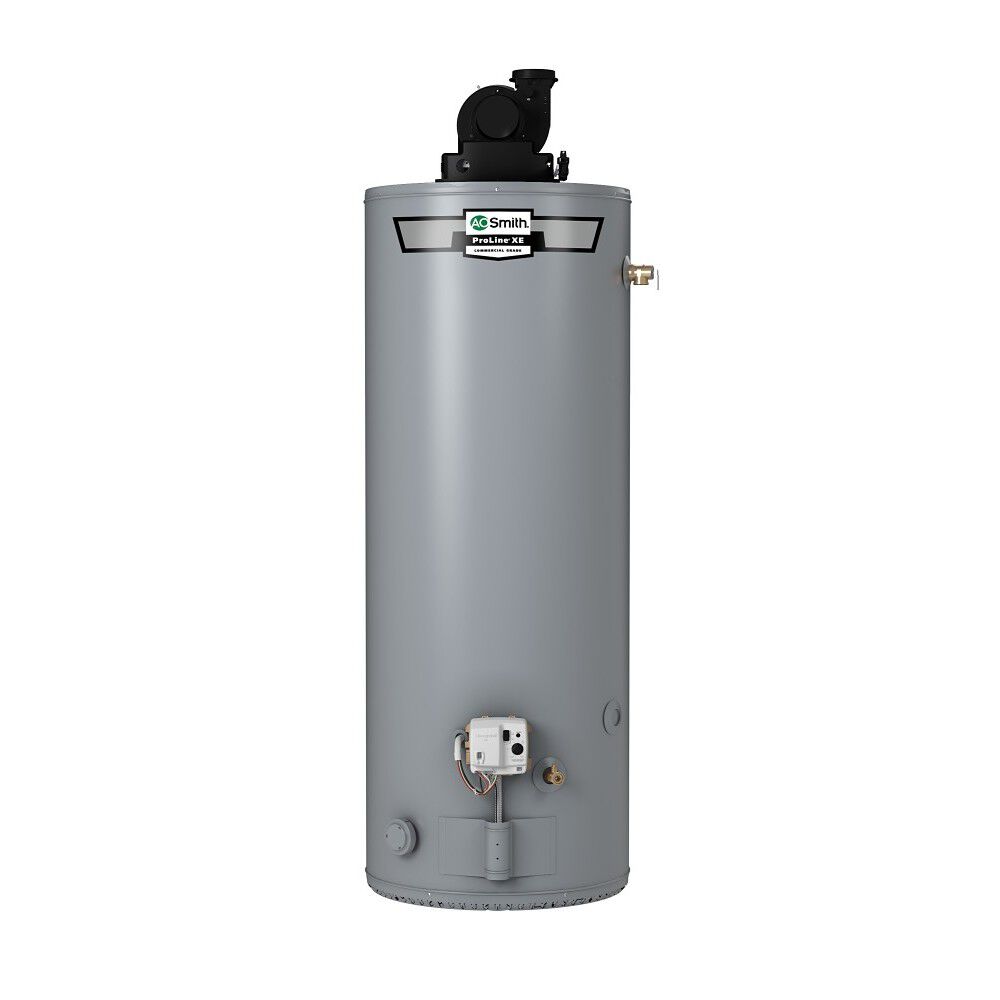

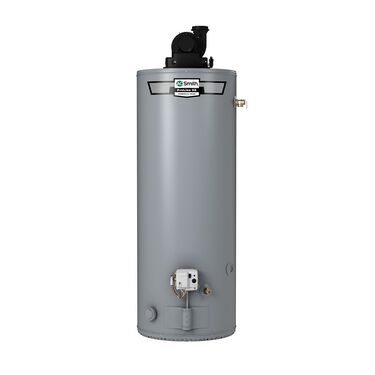

ProLine® XE 50-Gallon Power Vent Natural Gas Water Heater

Model GPVL-50 200
4.8 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 18ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Fuel Source
Maximum BTU's
Side Loop

  • Delivers 79-gallon first hour rating
  • 40,000 BTU input power vent design delivers up to 0.72 Uniform Energy Factor
  • What to Expect from this Model
    modal-clock
    32.3 minutes
    single shower length
    modal-frame
    4 showers
    back-to-back
    modal-frame
    2.9 showers
    at the same time
    modal-tank-capacity
    76 gallons
    max tub size
    modal-cost
    $249/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    Product Details
    • Delivers 79-gallon first hour rating
    • 40,000 BTU input power vent design delivers up to 0.72 Uniform Energy Factor
    • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
    • Automatic pilot relight system shuts reduces gas consumption and eliminates nuisance pilot outages
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • DynaClean™ automatic cleaning system protects against sediment build-up
    • Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Commercial-grade brass drain valve for durable and easy operation
    • 6-year limited tank and parts warranty

    • The ProLine® XE 50-Gallon Power Vent Natural Gas Water Heater is engineered to maximize efficiency while offering greater flexibility in installation options. Featuring a 50-gallon (nominal) tank and a 40,000 BTU gas burner, the GPVL-50 Power Vent delivers a first hour rating of 79 gallons and a recovery rate of 44.7 gallons per hour. This model features a 0.72 Uniform Energy Factor and carries a 6-year limited warranty. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® XE water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    49 Gallons
    UEF
    0.72
    Maximum BTUs
    40,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    1"
    Emissions
    Low NOx
    First Hour Rating
    79 Gallons
    ASME Certified
    No
    LEED Rating
    1.00
    Amperes
    5
    Blanket Included
    No
    Destination Country
    US
    Digital Display
    true
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Height to Gas Valve
    12.00
    Height to T&P
    43.75
    Ignition Type
    Electronic Hot Surface Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Product Tier
    ProLine® XE
    Shipping Height
    62.75"
    Shipping Length
    33.5"
    Shipping Width
    25.5"
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    60"
    Diameter
    24 in."
    Shipping Weight
    198lbs
    Vent Type
    Power Vent
    Find a Replacement
    Current Product
    Option 2
    ProLine® XE 50-Gallon Power Vent Natural Gas Water Heater
    ProLine® XE Ultra-Low NOx Indoor 180,000 BTU Condensing Natural Gas Tankless Water Heater
    GPVL-50
    ATI-340H
    Rebates up to $300 +
    Rebates up to $300 +
    Nominal Capacity
    50 Gallons
    Rated Storage Volume
    49 Gallons
    Diameter
    24 in."
    Width
    17.75"
    Depth
    31.75"
    11.25"
    Height
    60"
    23.625"
    Shipping Weight
    198lbs
    70lbs
    Power Source
    GAS
    GAS
    Limited Tank Warranty
    6 Years
    0 Years
    Limited Parts Warranty
    6 Years
    5 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    BOTTOM
    Water Connection Size
    1"
    First Hour Rating
    79 Gallons
    Thermal Efficiency
    0%
    0%
