Product Details
- Delivers 54-gallon first hour rating
- Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
- Lowboy water heater designed for installation under a counter, in a crawl space or in other tight spaces
- Side-mounted plumbing and electrical connections (optional top-mounted water connections for field conversion)
- Patented Blue Diamond® glass tank lining protects against corrosion
- DynaClean™ automatic cleaning system protects against sediment build-up
- Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
- Commercial-grade brass drain valve for durable and easy operation
- CSA Certified and ASME Rated T&P Relief Valve, Factory-Installed
- 6-year limited tank and parts warranty

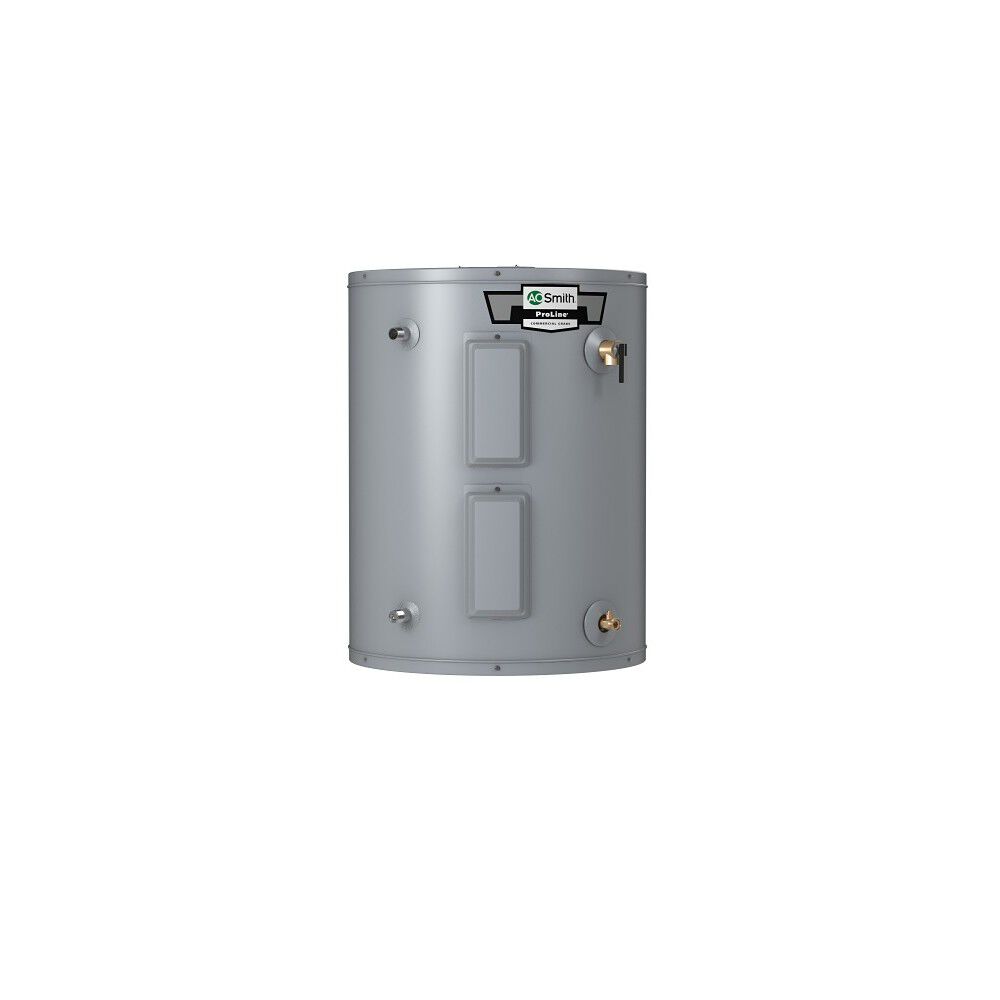

The ProLine® Lowboy Side Connect electric water heater is designed to take up as little room as possible and is the ideal choice for when installation space is limited to tight spaces such as under counters and in crawl spaces. With a 38-gallon (nominal) tank, the ENJ-40 delivers a first hour rating of 54 gallons at a Uniform Energy Factor of 0.93. The sacrificial anode helps protect the tank from the corrosive effects of water, and is accompanied by a 6-year limited tank warranty. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.
Specifications
Tech Specs
Nominal Gallon Capacity
38 Gallons
Rated Storage Volume
35 Gallons
UEF
0.93
Power Source
ELECTRIC
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
Water Connection Location
SIDE
Water Connection Size
0.75"
First Hour Rating
54 Gallons
ASME Certified
No
Blanket Included
No
Destination Country
US
Height to T&P
24.00
Installation Type
INDOOR
Max Wattage
4,500
Number of Elements
2
Shipping Height
37"
Shipping Length
30.75"
Shipping Width
25.13"
Side Loop
No
Voltage
240
Dimension & Venting
Type
Water Heater
Height
33.5"
Diameter
26 in."
Width
26"
Shipping Weight
118lbs
