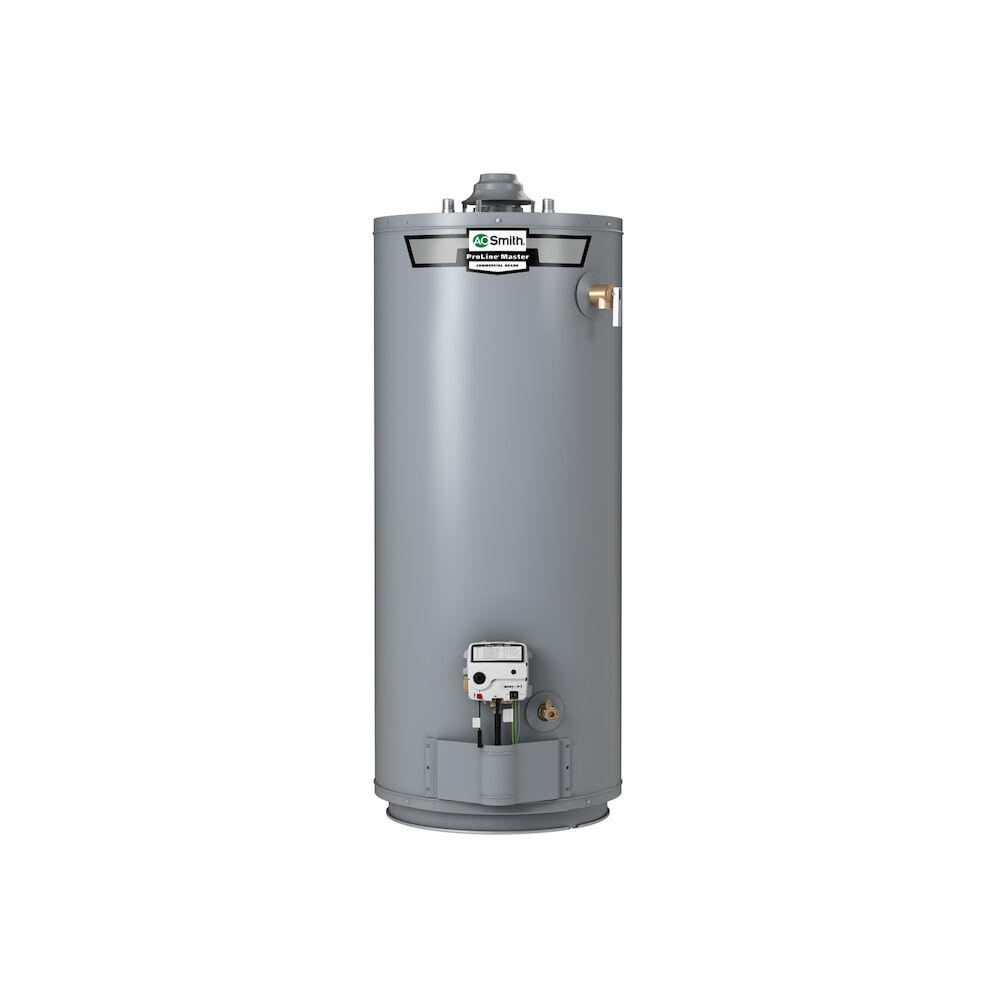

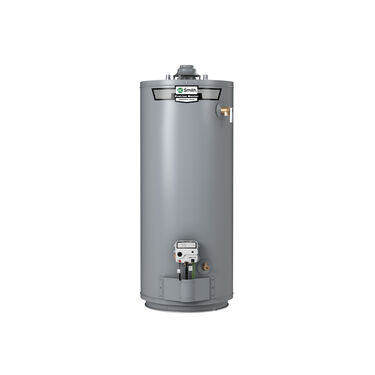

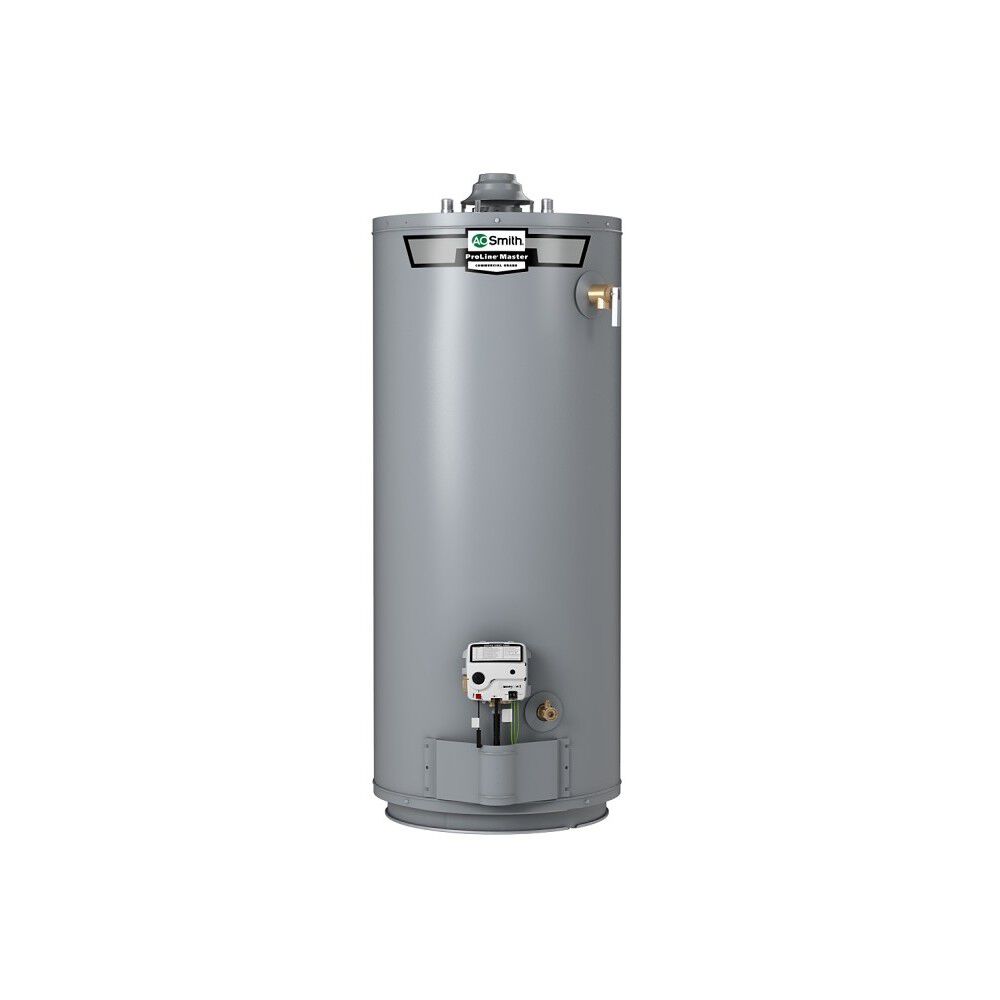

ProLine® 40-Gallon Atmospheric Vent Short Natural Gas Water Heater

Model GCBL-40 400
5 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 21ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Advanced Options
Fuel Source
First Hour Rating
Maximum BTU's
Side Loop
Diameter

  • Delivers 68-gallon first hour rating
  • 40,000 BTU input atmospheric vent design delivers up to 0.57 Uniform Energy Factor
  • Standard atmospheric vent installation with 3" or 4" B-vent, no power required

    • Find a Local Pro
    What to Expect from this Model
    modal-clock
    tooltip
    Number of minutes you can enjoy a shower before running out of hot water. Assumes a 2.1 GPM flow rate
    23.7 minutes
    single shower length
    modal-frame
    tooltip
    Number of back-to-back showers you can take without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    3 showers
    back-to-back
    modal-frame
    tooltip
    Number of showers you can take at the same time without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    2.2 showers
    at the same time
    modal-tank-capacity
    tooltip
    Biggest tub this water heater will fill without running out of hot water. Assumes a 5.0 GPM flow rate, and a 67% fill level
    55 gallons
    max tub size
    modal-cost
    tooltip
    The estimated annual cost to operate this water heater in your location
    $312/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    modal-edit
    Edit Location / Advanced Settings
    Product Details
    • Delivers 68-gallon first hour rating
    • 40,000 BTU input atmospheric vent design delivers up to 0.57 Uniform Energy Factor
    • Standard atmospheric vent installation with 3" or 4" B-vent, no power required
    • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
    • Push-button piezo ignitor makes lighting pilot fast & easy
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • DynaClean™ automatic cleaning system protects against sediment build-up
    • Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Commercial-grade brass drain valve for durable and easy operation
    • 6-year limited tank and parts warranty

      • The ProLine® 40-Gallon Atmospheric Vent Short Natural Gas Water Heater is designed to deliver an economical performance that can lower your energy bills and also provide long-lasting value. Featuring a 40-gallon (nominal) tank and a 40,000 BTU gas burner, the GCBL-40 Standard Vent delivers a first hour rating of 68 gallons and a recovery rate of 41 gallons per hour. It carries a 6-year limited tank warranty, and meets Low NOx emission requirements. This model ships with a supplied insulation blanket. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.57
    Maximum BTUs
    40,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    68 Gallons
    ASME Certified
    No
    Blanket Included
    Yes
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Height to Gas Valve
    12.50
    Height to T&P
    41.25
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Product Tier
    ProLine®
    Shipping Height
    51.31"
    Shipping Length
    26.63"
    Shipping Width
    21.13"
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    47.75"
    Diameter
    20 in."
    Shipping Weight
    134lbs
    Vent Type
    Atmospheric Vent
    Maintenance & Troubleshooting
    Maintenance

    Residential ProLine® Series Atmospheric Vent Application and Installation

    Residential ProLine® Series Atmospheric Vent Lighting the Pilot

    Troubleshooting

    Residential ProLine® Series Atmospheric Vent Draft Test

    Residential ProLine® Series Atmospheric Vent No Hot Water

    Residential ProLine® Series Atmospheric Vent Status Code 1 Flash

    Residential ProLine® Series Atmospheric Vent Status Code 2 Flash

    Residential ProLine® Series Atmospheric Vent Status Code 4 Flash

    Residential ProLine® Series Atmospheric Vent Status Code 5 Flash

    Residential ProLine® Series Atmospheric Vent Status Code 7 Flash

    Residential ProLine® Series Atmospheric Vent Status Code 8 Flash

    Residential ProLine® Series Atmospheric Vent Status Code Light Continuous

    Marketing Videos
    Residential ProLine® Series Atmospheric Vent Features and Benefits
    Residential ProLine® Series Atmospheric Vent How It Works
    Find a Replacement
    Current Product
    Option 2
    ProLine® 40-Gallon Atmospheric Vent Short Natural Gas Water Heater
    ProLine® XE Ultra-Low NOx Indoor 160,000 BTU Condensing Natural Gas Tankless Water Heater
    GCBL-40
    ATI-240H
    current Product
    option 1
    Rebates up to $300 +
    Rebates up to $300 +
    Nominal Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    Diameter
    20 in."
    Width
    17.75"
    Depth
    23.75"
    11.25"
    Height
    47.75"
    23.63"
    Shipping Weight
    134lbs
    70lbs
    Power Source
    GAS
    GAS
    Limited Tank Warranty
    6 Years
    0 Years
    Limited Parts Warranty
    6 Years
    5 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    BOTTOM
    Water Connection Size
    0.75"
    First Hour Rating
    68 Gallons
    Thermal Efficiency
    0%
    0%
