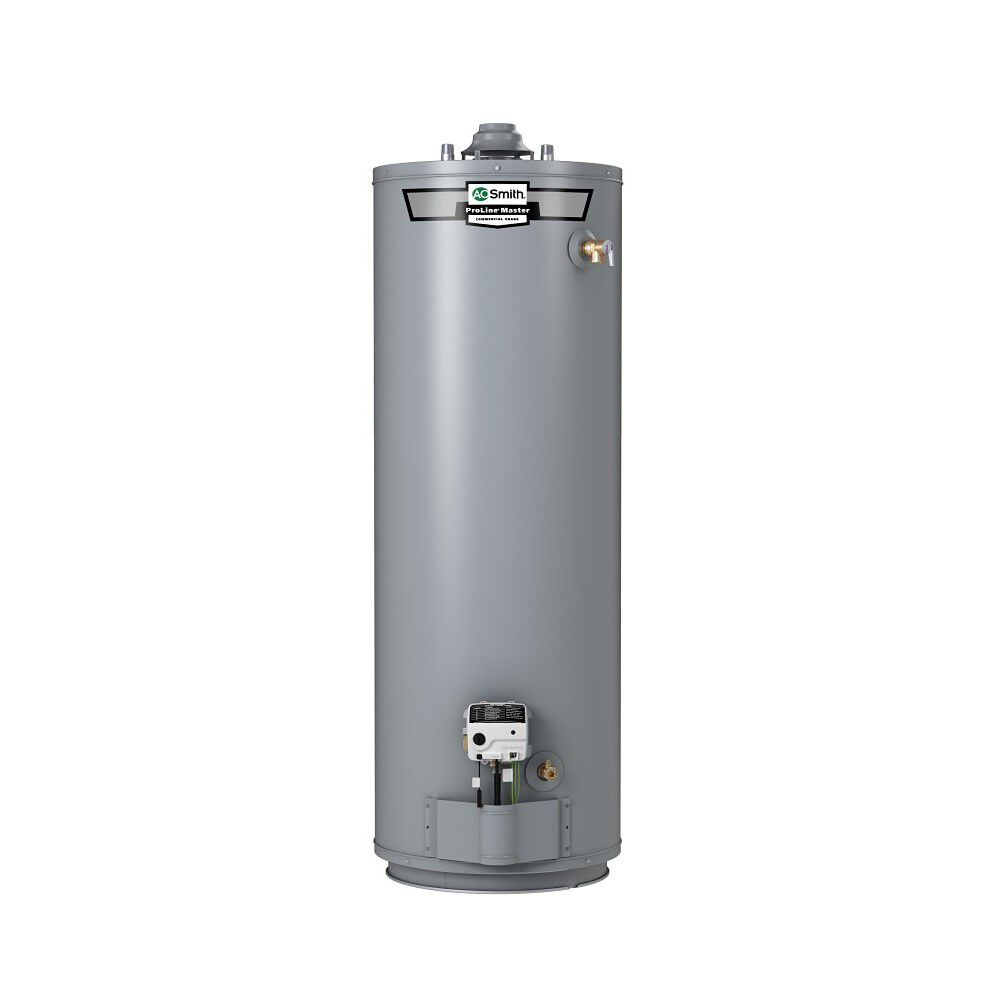

ProLine® Master 40-Gallon Ultra-Low NOx Atmospheric Vent Tall Natural Gas Water Heater

Model HUR-40 400
5 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 12ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Height Classification
UEF
Advanced Options
Limited Tank Warranty
Diameter

  • Delivers 81-gallon first hour rating
  • 40,000 BTU input atmospheric vent design delivers up to 0.64 Uniform Energy Factor
  • Ultra-Low NOX Green Choice® Gas Burner, meets or exceeds emission requirements in California & Utah
  • What to Expect from this Model
    modal-clock
    25.4 minutes
    single shower length
    modal-frame
    3.2 showers
    back-to-back
    modal-frame
    2.4 showers
    at the same time
    modal-tank-capacity
    60 gallons
    max tub size
    modal-cost
    $278/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    Product Details
    • Delivers 81-gallon first hour rating
    • 40,000 BTU input atmospheric vent design delivers up to 0.64 Uniform Energy Factor
    • Ultra-Low NOX Green Choice® Gas Burner, meets or exceeds emission requirements in California & Utah
    • Push-button piezo ignitor makes lighting pilot fast & easy
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • DynaClean™ automatic cleaning system protects against sediment build-up
    • Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • 8-year limited tank and parts warranty

    • The ProLine® Master 40-Gallon Ultra-Low NOx Atmospheric Vent Tall Natural Gas Water Heater delivers an efficient, reliable performance and features an innovative design that protects against accidental ignition of flammable vapors. Featuring a 40-gallon (nominal) tank and a 40,000 BTU gas burner, the HUR-40 Standard Vent delivers a first hour rating of 81 gallons and a recovery rate of 41 gallons per hour. It carries a 8-year limited tank warranty, and meets Ultra-Low NOx emission requirements. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® Master water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.64
    Thermal Efficiency
    78%
    Maximum BTUs
    40,000
    Power Source
    GAS
    Limited Tank Warranty
    8 Years
    Limited Parts Warranty
    8 Years
    T&P Relief Valve
    Yes
    Water Connection Size
    0.75"
    Emissions
    Ultra-Low NOx
    First Hour Rating
    81 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Height to Gas Valve
    11.00
    Height to T&P
    51.75
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Product Tier
    ProLine® Master
    Recovery Rise at 90°F
    42
    Shipping Height
    61.81"
    Shipping Length
    24.13"
    Shipping Width
    21.13"
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    58.25"
    Diameter
    20 in."
    Shipping Weight
    153lbs
    Vent Type
    Atmospheric Vent
