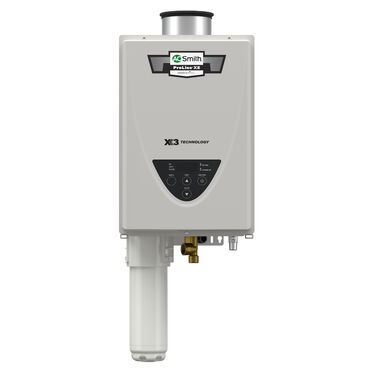

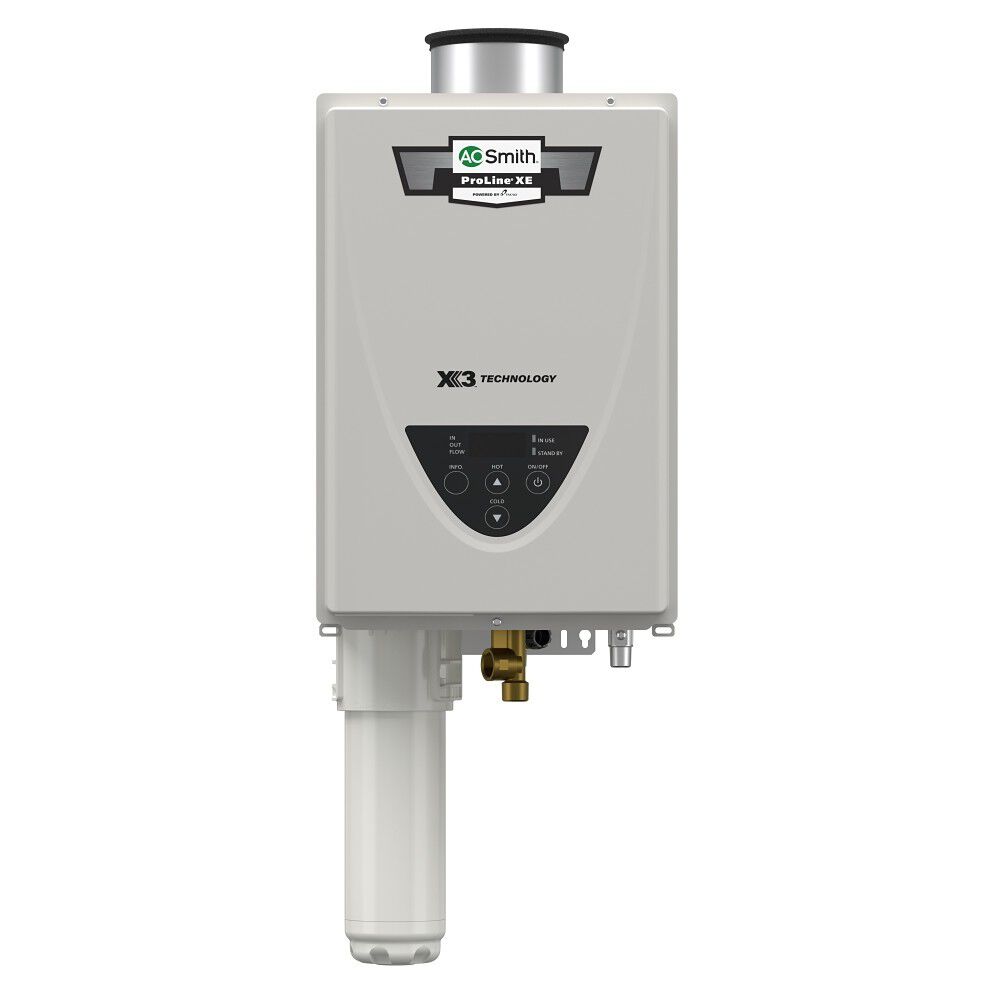

ProLine® XE Concentric Vent Indoor 190,000 BTU Non-Condensing Natural Gas Tankless Water Heater with X3® Scale Prevention Technology

Model ATI-310CX3 110
Maximum BTU's

  • Continuous flow rate up to 8.0 GPM
  • X3® Scale Prevention Technology
  • Wall-mount design saves valuable space and allows for additional storage and flexibility
  • What to Expect from this Model
    modal-clock
    Unlimited
    single shower length
    modal-frame
    Unlimited
    back-to-back
    modal-frame
    showers
    at the same time
    modal-tank-capacity
    Unlimited
    max tub size
    modal-cost
    $/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    Product Details
    • Continuous flow rate up to 8.0 GPM
    • X3® Scale Prevention Technology
    • Wall-mount design saves valuable space and allows for additional storage and flexibility
    • Commercial-grade copper heat exchanger is 25x better than stainless steel at heat transfer, stabilizing outgoing water temperatures quicker
    • Easily convertible from natural gas to propane
    • Highly efficiency tankless water heater delivers up to .81 Uniform Energy Factor (UEF)
    • Direct vent APNC35 concentric vent system, Vertical or Horizontal Vent Termination Installation
    • Includes integrated temperature controls and advanced diagnostics to simplify troubleshooting
    • Safety features include exhaust & water temperature safety control, overheat cut-off fuse and air-fuel ratio (AFR) sensor
    • 15-year limited warranty on heat exchanger in residential applications

    • Fully modulating, gas fired, tankless water heater with sealed combustion and power vented flue. Supplies hot water to domestic hot water systems (directly or indirectly) and can be used with water storage tanks, re-circulation systems (with use of a crossover valve), and/or combined domestic and heating applications. The ATI-310CX3 tankless water heater uses up to 190,000 BTUs of Natural Gas or Liquid Propane to deliver a max flow rate of 8.0 GPM. It utilizes condensing technology to achieve a Uniform Energy Factor of 0.81. This model meets Ultra-Low NOx requirements, and has a 15-year limited warranty on the heat exchanger in residential applications. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors. Now with X3® Scale Prevention Technology, these non-condensing units offer extended service life of up to three times longer than traditional/unprotected models.

    Specifications
    Tech Specs
    UEF
    0.81
    Maximum BTUs
    190,000
    Power Source
    GAS
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    Water Connection Size
    3/4-in"
    Emissions
    Ultra-Low NOx
    ASME Certified
    No
    Destination Country
    US
    Fuel Source
    MULTIPLE
    Ignition Type
    Electronic Hot Surface Igniter
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    15 Years
    Max Flow Rate
    4.60
    Minimum BTUs
    15,000.00
    Shipping Height
    35.5"
    Shipping Length
    18"
    Shipping Width
    15.7"
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    36.125"
    Width
    14"
    Shipping Weight
    62.6lbs
    Vent Type
    Concentric Vent
