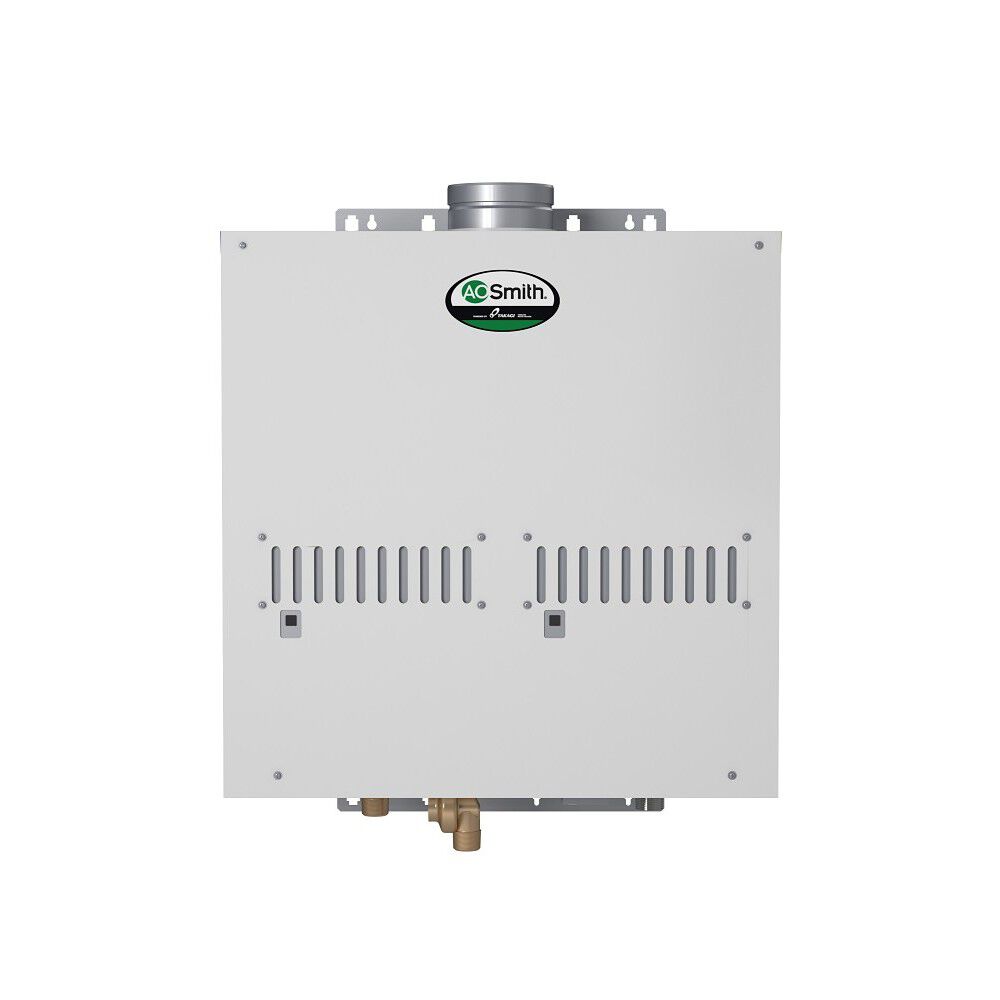

Low NOx 380,000 BTU Non-Condensing Tankless Commercial Water Heater

Model ATIO-910 100
Installation Type
Fuel Source
Maximum BTU's

  • Low NOx non-condensing technology provides up to 80% Thermal Efficiency
  • Continuous maximum flow rates up to 14.5 GPM (Category III required)
  • Durable commercial-grade primary copper heat exchanger is 25x better at heat transfer than stainless steel
  • Product Details
    • Low NOx non-condensing technology provides up to 80% Thermal Efficiency
    • Continuous maximum flow rates up to 14.5 GPM (Category III required)
    • Durable commercial-grade primary copper heat exchanger is 25x better at heat transfer than stainless steel
    • Easy-link up to 4 units
    • Multi link up to 10 units with TM-MC01 multi unit controller
    • Combined indoor/outdoor models
    • Natural gas or propane (LP) models available
    • Safety features include built-in freeze protection, overhead cutoff fuse, inlet/outlet thermistor monitor, surge absorber and flame sensor
    • Vertical or Horizontal vent installation with 5” Category III Stainless Steel
    • 6-year limited warranty on heat exchanger in commercial applications / 5-year limited warranty on all parts

    • Designed specifically for heavy-duty commercial applications, A .O. Smith's ATIO-910 non-condensing, fully modulating, gas-fired tankless water heaters with sealed combustion (optional) and power vented flue can be installed either indoors or outdoors. ATIO-910 models are capable of supplying hot water for domestic hot water systems (directly or indirectly) and can be used with water storage tanks, recirculation systems, and/or combined domestic & heating applications. ATIO-910 uses up to 380,000 BTU/h of gas to deliver a max flow rate of 14.5 GPM (Category III required). A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

    Specifications
    Tech Specs
    Maximum BTUs
    380,000
    Power Source
    GAS
    Limited Parts Warranty
    5 Years
    Emissions
    Ultra-Low NOx
    ASME Certified
    No
    Destination Country
    US
    Flue Diameter
    3.00
    Fuel Source
    NATURAL
    Installation Type
    BOTH
    Limited Heat Exchanger Warranty
    6 Years
    Minimum BTUs
    15,000.00
    Application
    COMMERCIAL
    Shipping Height
    34.875"
    Shipping Length
    29"
    Shipping Width
    16.875"
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    24.88"
    Width
    25.25"
    Shipping Weight
    113lbs
    Vent Type
    Direct Vent
