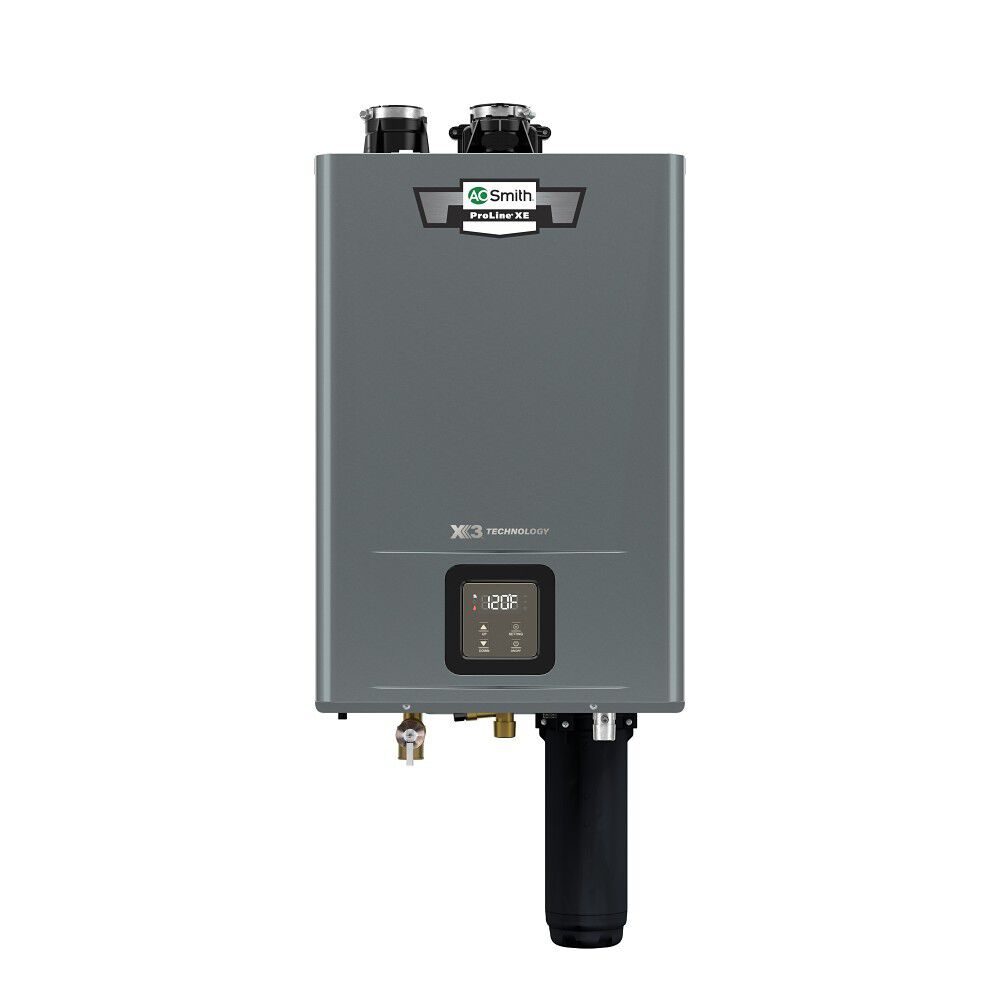

Adapt™ SC Standard Condensing Ultra-Low NOx 199,000 BTU Natural Gas Tankless Water Heater with X3® Scale Prevention Technology

Model ATM-199X3-N 100
4.1 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 20ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
X3® Scale Prevention Technology
Maximum BTU's

  • ENERGY STAR® certified with a UEF of 0.95
  • Flexibility in Installation—PVC venting flexibility (2” up to 50’ & 3" up to 150’); Install indoor or outdoor (outdoor kit sold separately)
  • Save up to $116/year on operating costs—Compared to a standard 50-gallon atmospheric vent natural gas tank water heater
  • What to Expect from this Model
    modal-clock
    Unlimited
    single shower length
    modal-frame
    Unlimited
    back-to-back
    modal-frame
    2.7 showers
    at the same time
    modal-tank-capacity
    Unlimited
    max tub size
    modal-cost
    $187/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    Product Details
    • ENERGY STAR® certified with a UEF of 0.95
    • Flexibility in Installation—PVC venting flexibility (2” up to 50’ & 3" up to 150’); Install indoor or outdoor (outdoor kit sold separately)
    • Save up to $116/year on operating costs—Compared to a standard 50-gallon atmospheric vent natural gas tank water heater

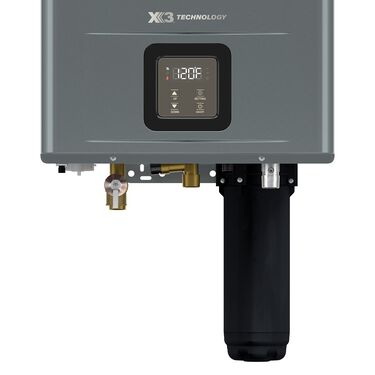

    • Lasts 3x Longer—Integrated X3® Scale Prevention Technology provides protection for the heat exchanger
    • Expandable for Larger Applications—Cascade up to 12 like heaters when multiple water heaters are required to work in conjunction (cable included)
    • Built-in Control Display—Check status, error codes and settings using the built-in display

    • The ATM-199X3-N ADAPT™ SC Standard condensing tankless water heater uses up to 199,000 BTUs of Natural Gas to deliver a max flow rate of 10.5 GPM. A. O. Smith’s ADAPT™ SC tankless water heaters deliver robust, on-demand performance and the flexibility to install in virtually any residential setting.

      Built-in X3® Scale Prevention Technology helps maintain like-new performance by protecting the heat exchanger from build-up. Scale prevention protection can prolong the life of the heat exchanger by up to 300% as compared to an unprotected unit.

      The ADAPT™ SC line features a built-in Control Display for setting and checking heater status and error codes.

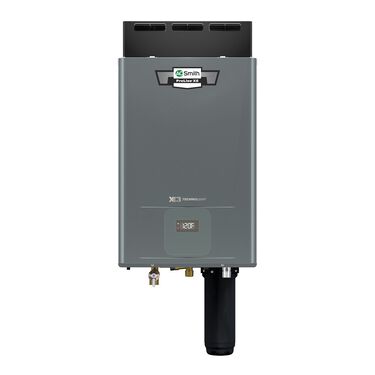

      All models are ENERGY STAR® certified with a Uniform Energy Factor of 0.95 and comply with Ultra-Low NOx regulations. All ADAPT™ SC models can be installed indoors or outdoors (outdoor vent cap kit sold separately).

      Cascade up to 12 like heaters for larger applications requiring multiple water heaters to work in conjunction, cable included.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    1 Gallons
    UEF
    0.95
    Maximum BTUs
    199,000
    Power Source
    GAS
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    Water Connection Size
    0.75"
    ASME Certified
    No
    Amperes
    5
    Destination Country
    US
    ENERGY STAR® Certified
    true
    Flue Diameter
    2.00
    Fuel Source
    NATURAL
    Installation Type
    BOTH
    Limited Heat Exchanger Warranty
    15 Years
    Max Flow Rate
    6.00
    Minimum BTUs
    10,000.00
    Application
    RESIDENTIAL
    Shipping Height
    17.38"
    Shipping Length
    39.25"
    Shipping Width
    22.13"
    Side Loop
    No
    Vent Material
    ABS, PVC, CPVC and polypropylene
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    40.41"
    Width
    17.12"
    Shipping Weight
    93lbs
