Product Details
- Equipped with Demand Response (CTA-2045 EcoPortCM) communication port for Utility Demand Response program participation (Module needed from local utility)
- Meets state of Washington and Oregon Grid Capable requirements
- Choose from three Hot Water+ levels for up to 40% more hot water than a standard heat pump
- Electronic controls with Wifi connectivity
- Remote control through the A. O. Smith App
- Leak Detection sensor - Sounds an audible alarm when water is detected
- Automatic Shut-off valve - Closes valve on incoming cold water inlet when leak is detected
- Dual 5500 watt stainless steel elements for the fastest recovery and reliable operation
- DynaClean™ automatic cleaning system protects against sediment build-up
- 10-year limited tank and parts warranty

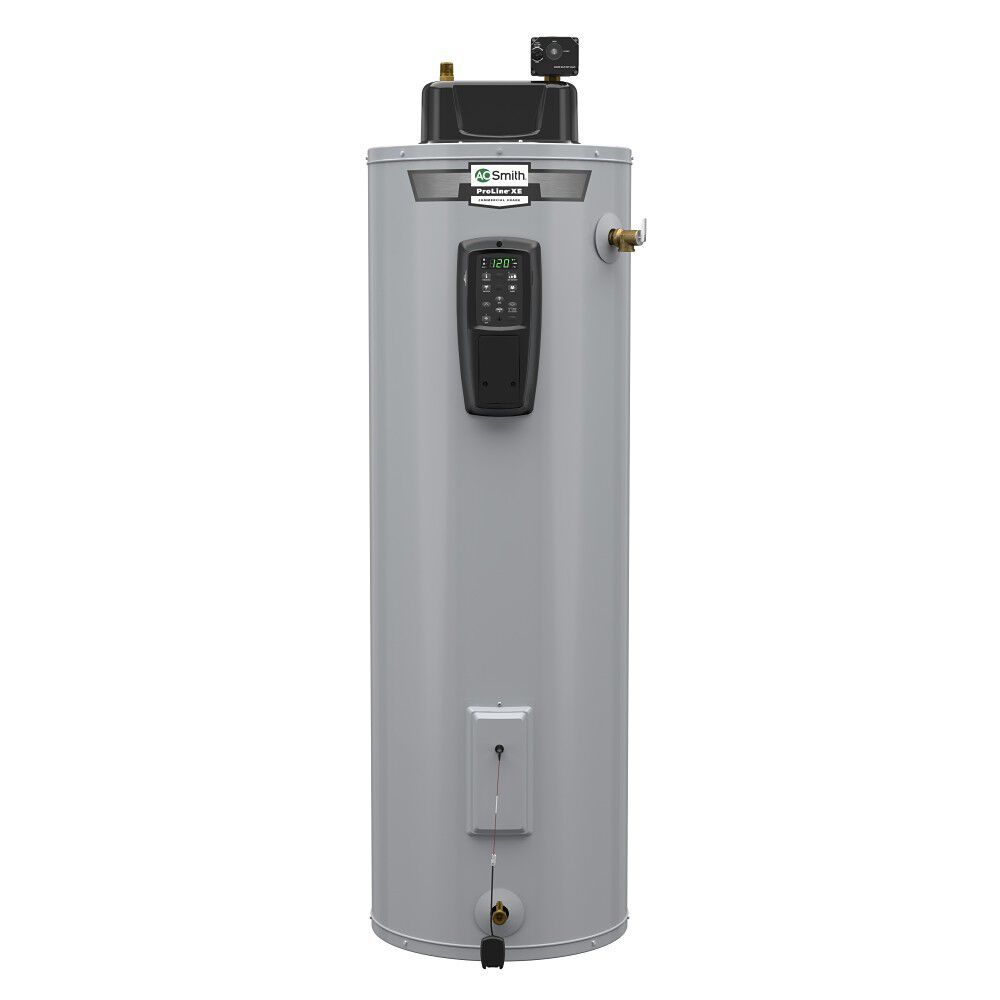

Get smarter hot water from A. O. Smith. Our ProLine® XE Smart Electric Grid-Capable water heaters are designed with iCOMM™ Wi-Fi technology greater control, leak detection and protection to provide homeowners with peace of mind. The CTA-2045 port allows for connection to Utility Smart Grid Programs.
Specifications
Tech Specs
Nominal Gallon Capacity
40 Gallons
Rated Storage Volume
36 Gallons
UEF
0.92
Power Source
ELECTRIC
Limited Tank Warranty
10 Years
Limited Parts Warranty
10 Years
T&P Relief Valve
No
Water Connection Location
TOP
Water Connection Size
3/4-in"
First Hour Rating
64 Gallons
ASME Certified
No
Destination Country
US
Height to T&P
53.25
Installation Type
INDOOR
Max Wattage
4,500
Number of Elements
2
Product Tier
ProLine® XE
Shipping Height
69.5"
Shipping Length
24.19"
Shipping Width
21"
Side Loop
No
Voltage
240
Dimension & Venting
Type
Water Heater
Height
65.25"
Diameter
20 in."
Width
20"
Shipping Weight
121lbs
