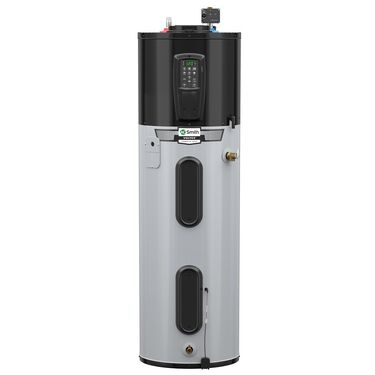

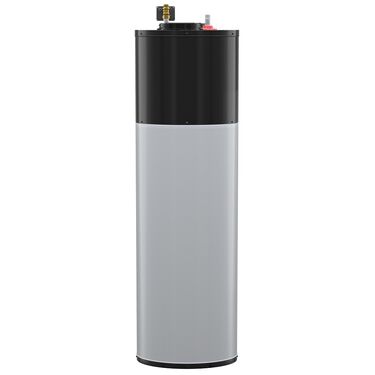

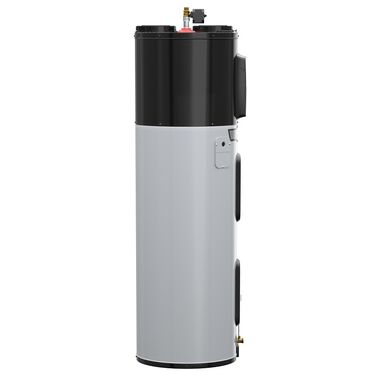

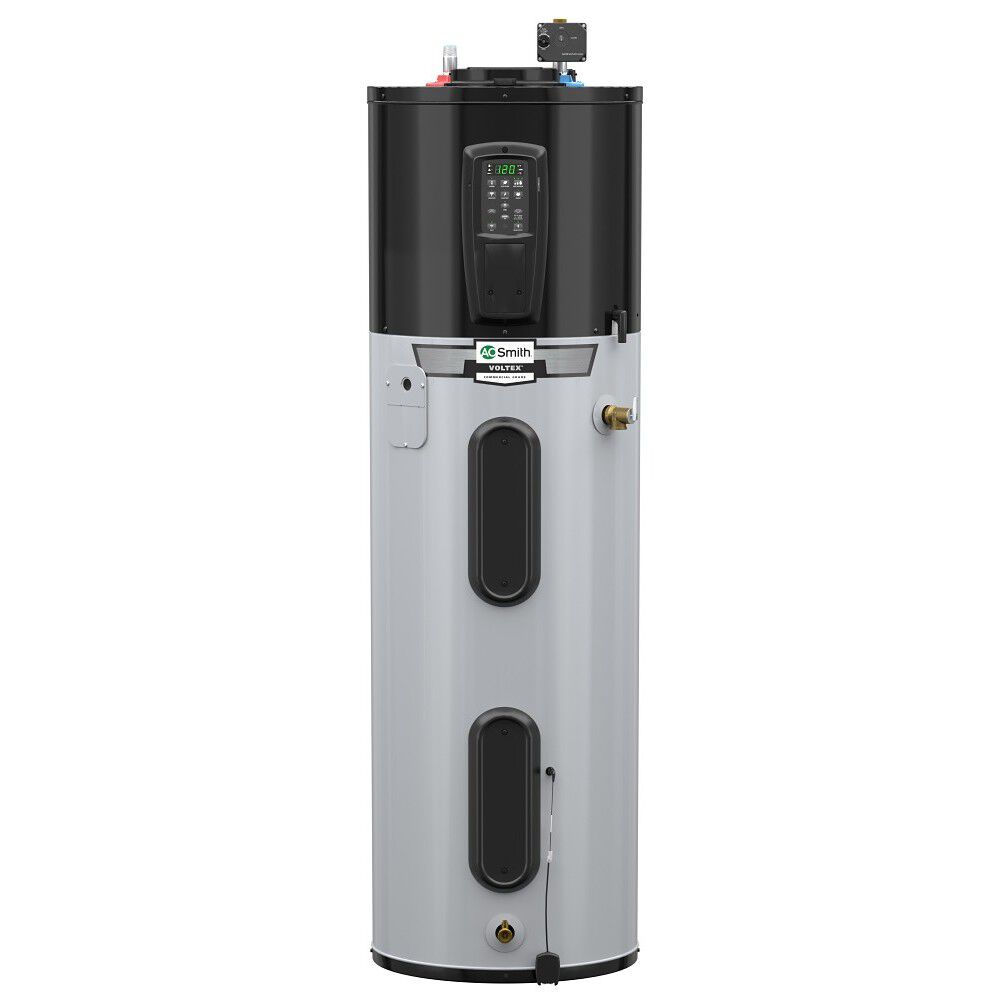

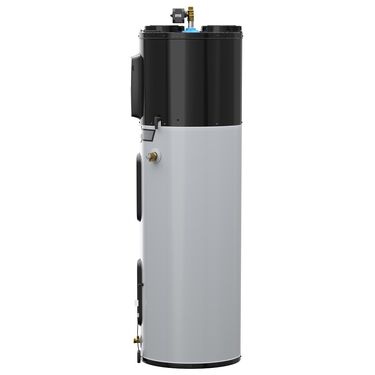

Voltex® MAX 40-Gallon Smart Hybrid Electric Heat Pump Water Heater with Premium Smart Valve Technology

Model HPTA-40 200
Capacity (Gallons)

  • ENERGY STAR® certified with up to 3.6 UEF rating
  • Delivers 55-gallon first hour rating with the assistance of dual 4,500-watt copper heating elements.
  • Delivers up to 40% More Hot Water—Choose from three Hot Water+ levels for up to 40% more hot water than a standard heat pump

    • Find a Local Pro
    Product Details
    • ENERGY STAR® certified with up to 3.6 UEF rating
    • Delivers 55-gallon first hour rating with the assistance of dual 4,500-watt copper heating elements.
    • Delivers up to 40% More Hot Water—Choose from three Hot Water+ levels for up to 40% more hot water than a standard heat pump

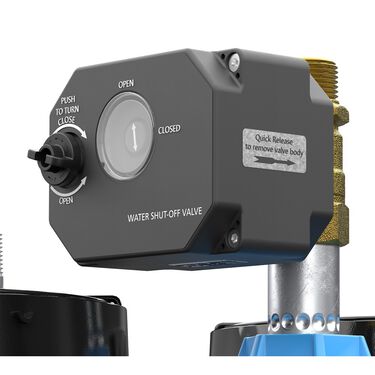

    • Smart Leak Protection Technology—Smart technology detects, alerts and notifies to help protect your water heater in the event of a leak. Also compatible with an optional automatic, cold water shut-off valve.
    • High-Efficiency & Lower Costs—4X more efficient, save up to $600 per year or $6,000 over 10 years in energy costs*
    • Whisper-Quiet Operation at 45 dBA
    • User-Friendly, Easy To Control—Easily set up alerts/notifications with built-in iCOMM™ Smart Connectivity and a free downloadable app.
    • Up to $1,800 in Local Utility Rebates may be available in your area—see rebate finder for details

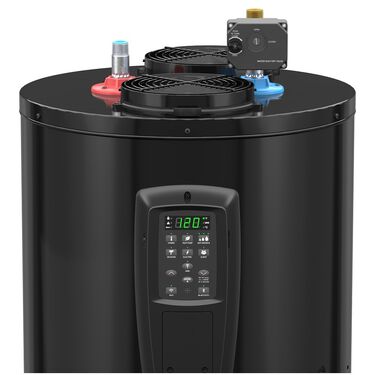

    • Flexible Design—Includes top water connection and zero clearance requirements on side and back
    • 10-year limited tank and parts warranty

      • The ENERGY STAR® certified Voltex® MAX Smart Hybrid Electric Heat Pump water heater can deliver larger volumes of hot water using innovative smart valve technology with Hot Water+ for up to 40% more hot water. The HPTA-40 provides peace of mind with smart sensor leak detection, automatic water shutoff, and 10-year limited tank and parts warranty.

      4x more efficient, the HPTA-40 heat pump delivers savings by using heat from the surrounding air to heat water; saving up to $600 per year on operating costs compared to standard electric water heaters of similar capacity. This model features a 40-gallon (nominal) tank with a 3.6 Uniform Energy Factor (UEF) and Northwest Energy Efficiency Alliance (NEEA) Tier 3 qualified.

      Premium features including vacation mode and guest mode save you money by adjusting to hot water demand in the home. Two heating elements enable the water heater to recover quickly during periods of high demand.

      A. O. Smith Voltex® MAX heat pump water heaters are residential products built to commercial-grade standards. The Voltex® MAX has advanced tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater.

      A. O. Smith Voltex® MAX heat pump water heaters are residential products built to commercial-grade standards.

      *Comparing 80-gallon Voltex® MAX heat pump against pre-2015 similarly-sized standard electric using DOE EF to UEF conversion rates and $0.14 per kWh electricity cost. Savings may vary.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    37 Gallons
    UEF
    3.6
    Power Source
    ELECTRIC
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years
    Water Connection Location
    TOP
    Water Connection Size
    3/4-in"
    First Hour Rating
    55 Gallons
    ASME Certified
    No
    Amperes
    23.6
    Destination Country
    US
    Digital Display
    true
    ENERGY STAR® Certified
    true
    Height to T&P
    40.00
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Shipping Height
    70.25"
    Shipping Length
    25.25"
    Shipping Width
    21.13"
    Side Loop
    No
    Voltage
    208 - 240
    Dimension & Venting
    Type
    Water Heater
    Height
    67.5"
    Diameter
    20 in."
    Width
    20"
    Shipping Weight
    191lbs
