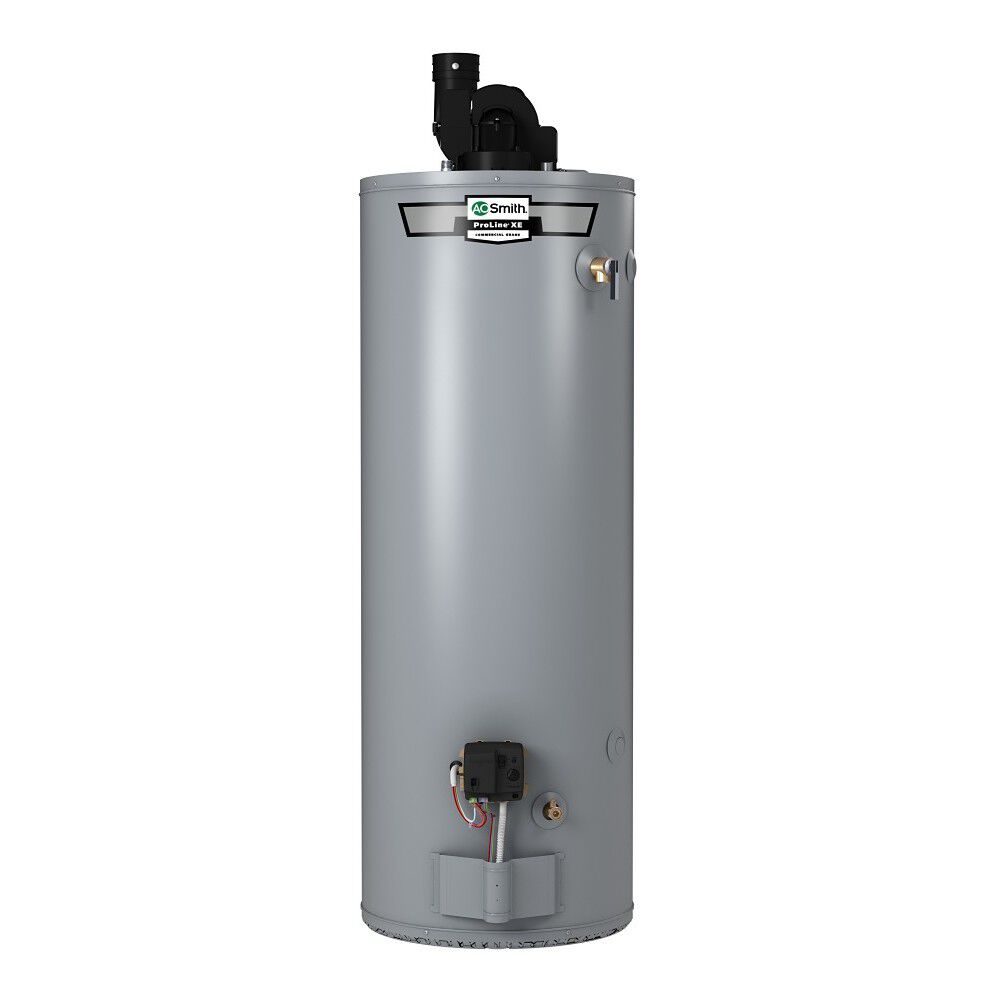

ProLine® XE 50-Gallon Power Direct Vent Tall Liquid Propane Gas Water Heater

Model GPDT-50L 301
4.8 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 44ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Fuel Source
First Hour Rating
Side Loop

  • Delivers 81-gallon first hour rating
  • 45,000 BTU input power direct vent design delivers up to 0.72 Uniform Energy Factor
  • What to Expect from this Model
    modal-clock
    0 minutes
    single shower length
    modal-frame
    showers
    back-to-back
    modal-frame
    1 showers
    at the same time
    modal-tank-capacity
    gallons
    max tub size
    modal-cost
    $672/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    Product Details
    • Delivers 81-gallon first hour rating
    • 45,000 BTU input power direct vent design delivers up to 0.72 Uniform Energy Factor
    • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
    • Automatic pilot relight system shuts reduces gas consumption and eliminates nuisance pilot outages
    • Includes side mounted recirculation taps for easy installation with combination space heating/potable water heating applications
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • DynaClean™ automatic cleaning system protects against sediment build-up
    • Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • 6-year limited tank and parts warranty

    • The ProLine® XE 50-Gallon Power Direct Vent Liquid Propane Gas Water Heater features a two-pipe combustion system that draws clean air from outside the home, eliminating any worries about indoor ventilation. Featuring a 50-gallon (nominal) tank and a 45,000 BTU propane burner, the GPDT-50L (LP) Power Direct Vent delivers a first hour rating of 81 gallons and a recovery rate of 41 gallons per hour. This model features a 0.68 Uniform Energy Factor and carries a 6-year limited warranty. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® XE water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    48 Gallons
    UEF
    0.72
    Maximum BTUs
    45,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    1"
    Emissions
    Low NOx
    First Hour Rating
    81 Gallons
    ASME Certified
    No
    Amperes
    5
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    PROPANE
    Height to Gas Valve
    12.00
    Height to T&P
    51.75
    Ignition Type
    Electronic Hot Surface Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Product Tier
    ProLine® XE
    Shipping Height
    69.88"
    Shipping Length
    31.2"
    Shipping Width
    23.4"
    Side Loop
    Yes
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    59"
    Diameter
    22 in."
    Shipping Weight
    195lbs
    Vent Type
    Power Direct Vent
