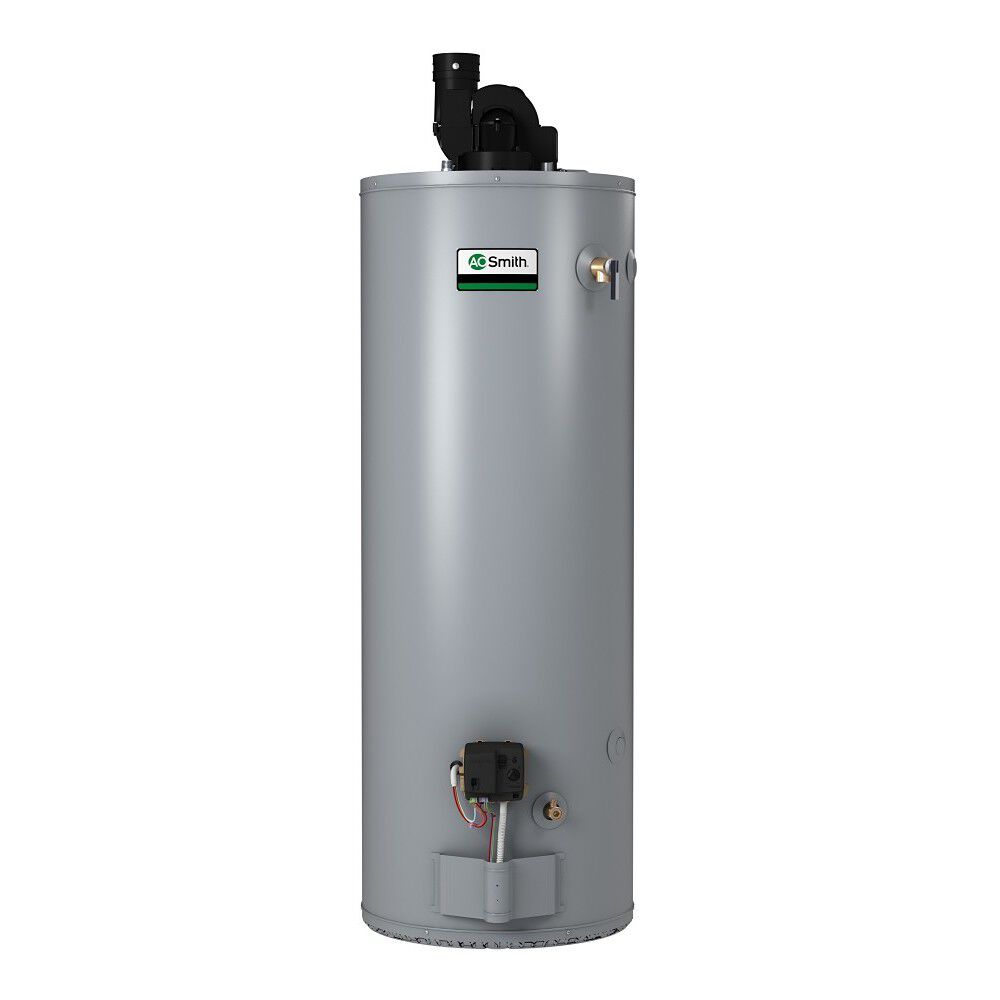

Conservationist® 75-Gallon Power Direct Vent Commercial Gas Water Heater

Model BPD-80 311
Capacity (Gallons)
Fuel Source
First Hour Rating
Side Loop

  • Delivers 74 GPH at 100°F Rise
  • DynaClean™ automatic cleaning system protects against sediment build-up
  • Patented Blue Diamond® glass tank lining protects against corrosion
  • Product Details
    • Delivers 74 GPH at 100°F Rise
    • DynaClean™ automatic cleaning system protects against sediment build-up
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • Hot surface ignition does not blow out, providing reliability and efficiency over spark ignitions
    • Enhanced flow brass drain valve designed for easy maintenance and easy operation
    • Factory-installed, CSA Certified and ASME Rated T&P Relief Valve
    • Flexible power direct vent design vents through the roof or sidewall venting with 3” or 4” PVC, CPVC, ABS or polypropylene
    • Quiet modular blower has built-in safety device preventing pilot or main burner operation if blower is not operating
    • Maximum hydrostatic working pressure 150 PSI
    • 3-year limited tank and 1-year limited parts warranty

    • The Conservationist® BPD-80 tank-type commercial gas water heater is intended for applications such as small office buildings and duplex apartment homes. The BPD-80 features a power direct vent design with a factory-installed blower. The blower permits sealed combustion direct vent operation with separate venting and air intake runs from outside the structure. The BPD-80 offers installation versatility by allowing venting and intake runs up to 50 feet, using 3" Schedule 40 PVC pipe. The power direct-vent design also eliminates the potential for performance and safety problems caused by negative air pressure, a problem found in many commercial applications with inadequate indoor ventilation. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    75 Gallons
    Rated Storage Volume
    72 Gallons
    UEF
    0.68
    Thermal Efficiency
    82%
    Maximum BTUs
    76,000
    Power Source
    GAS
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    Water Connection Location
    TOP
    First Hour Rating
    129 Gallons
    ASME Certified
    No
    Amperes
    5
    Destination Country
    US
    Flue Diameter
    5.00
    Fuel Source
    PROPANE
    Installation Type
    INDOOR
    Recovery Rise at 90°F
    84
    Shipping Height
    72.25"
    Shipping Length
    35.2"
    Shipping Width
    27.38"
    Side Loop
    Yes
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Diameter
    26 in."
    Shipping Weight
    280lbs
    Vent Type
    Power Direct Vent
