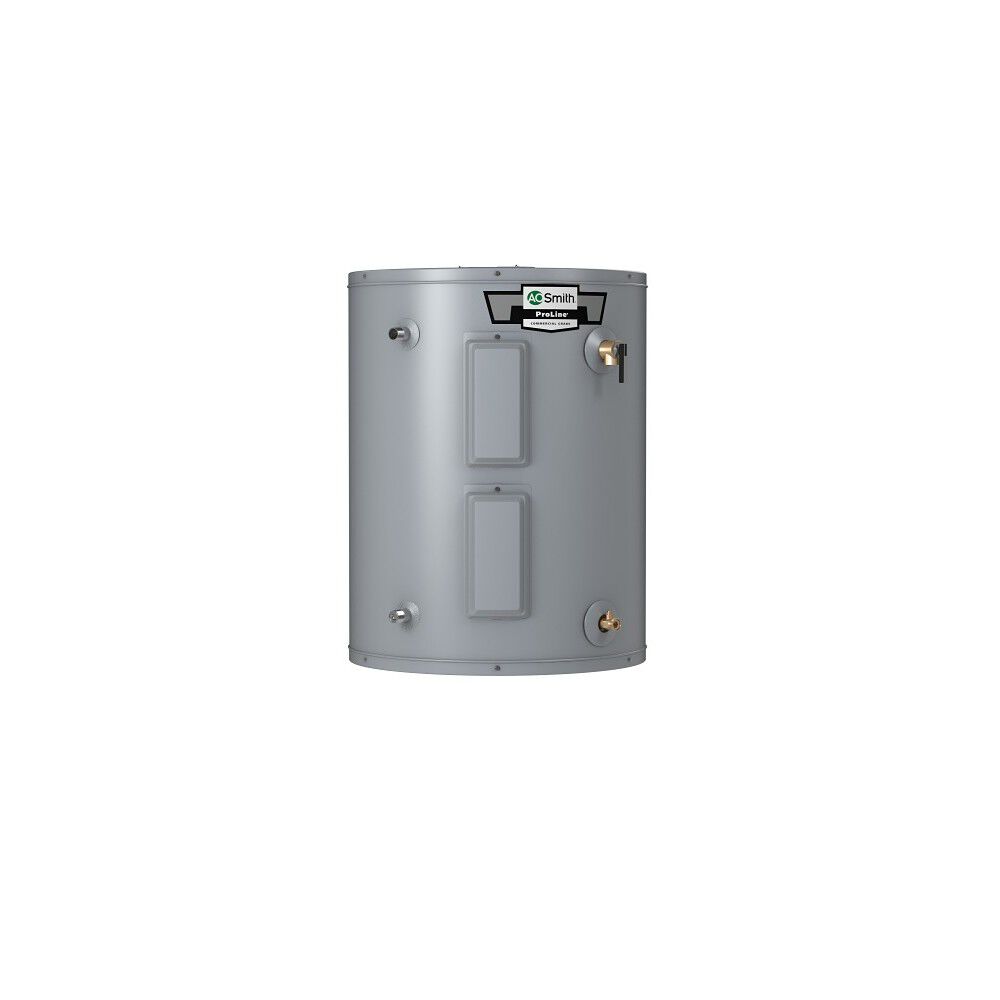

ProLine® 28-Gallon Lowboy Side-Connect Electric Water Heater

Model ENJ-30 100
Capacity (Gallons)
First Hour Rating
Blanket
Limited Tank Warranty

  • Delivers 43-gallon first hour rating
  • Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
  • Lowboy water heater designed for installation under a counter, in a crawl space or in other tight spaces

    • Find a Local Pro
    Product Details
    • Delivers 43-gallon first hour rating
    • Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
    • Lowboy water heater designed for installation under a counter, in a crawl space or in other tight spaces
    • Side-mounted plumbing and electrical connections (optional top-mounted water connections for field conversion)
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • DynaClean™ automatic cleaning system protects against sediment build-up
    • Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Commercial-grade brass drain valve for durable and easy operation
    • CSA Certified and ASME Rated T&P Relief Valve, Factory-Installed
    • 6-year limited tank and parts warranty

      • The ProLine® Lowboy Side Connect electric water heater is designed to take up as little room as possible and is the ideal choice for when installation space is limited to tight spaces such as under counters and in crawl spaces. With a 28-gallon (nominal) tank, the ENJ-30 delivers a first hour rating of 43 gallons at a Uniform Energy Factor of 0.91. The sacrificial anode helps protect the tank from the corrosive effects of water, and is accompanied by a 6-year limited tank warranty.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    28 Gallons
    Rated Storage Volume
    26 Gallons
    UEF
    0.91
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    Water Connection Location
    SIDE
    Water Connection Size
    0.75"
    First Hour Rating
    43 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Height to T&P
    21.75
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Shipping Height
    34.69"
    Shipping Length
    28.25"
    Shipping Width
    25.13"
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    31.25"
    Diameter
    24 in."
    Width
    24"
    Shipping Weight
    115lbs
