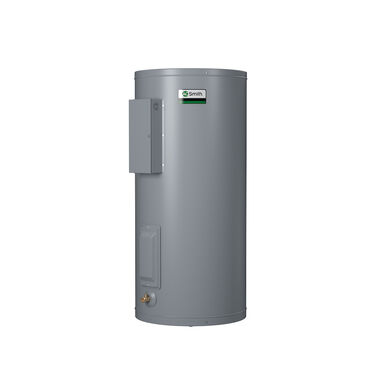

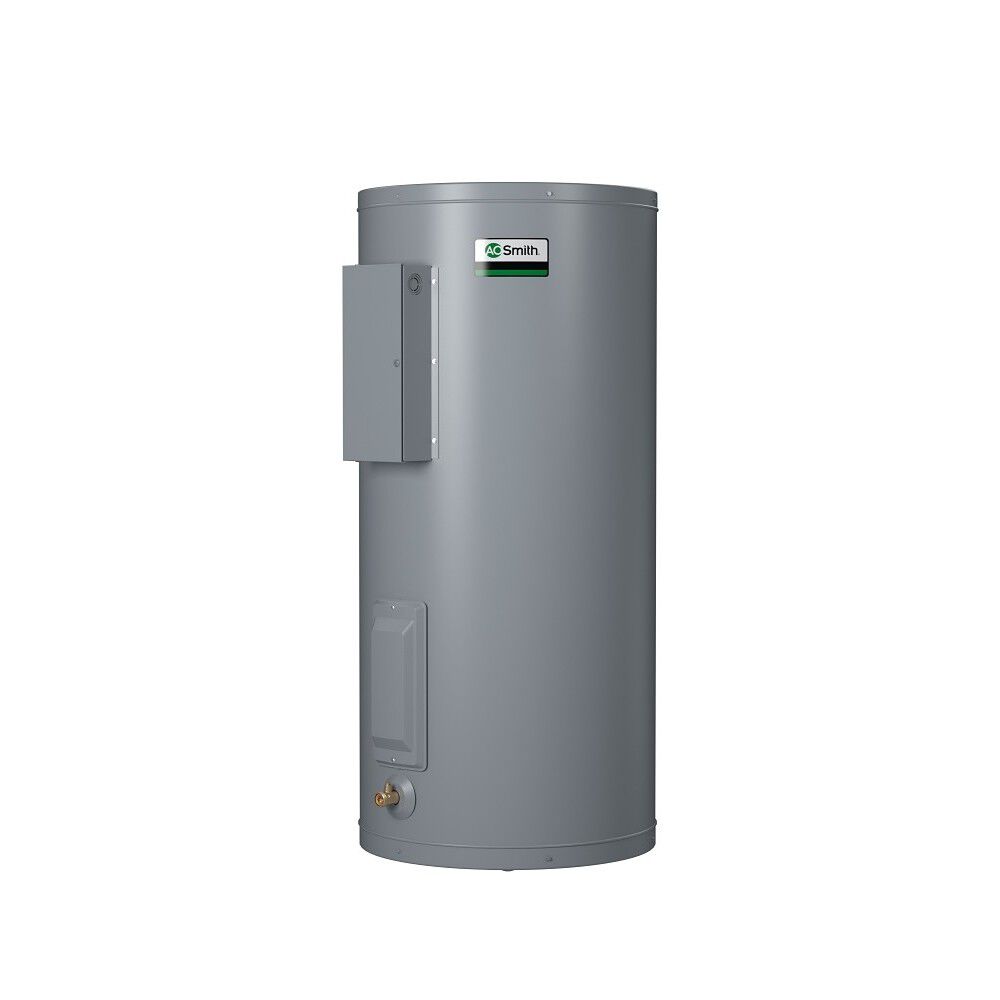

Dura-Power™ 55-Gallon Light Duty Standard Upright Commercial Electric Water Heater

Model DEN-52 100
Capacity (Gallons)
Height Classification
Advanced Options
Max Wattage
Voltage

  • Designed for use as a recovery water heater
  • Glass lining provides super protection against corrosion
  • Durable commercial-grade copper heating elements
  • Product Details
    • Designed for use as a recovery water heater
    • Glass lining provides super protection against corrosion
    • Durable commercial-grade copper heating elements
    • Factory installed terminal block for ease of installation
    • Temperature controls located behind hinged control compartment door for quick, easy access.
    • Meets ASHRAE/IES 90.1-2015
    • Commercial-grade anode rod provides maximum tank protection from corrosion
    • Most models convert to three-phase or single-phase in field for easy installation
    • 3-year limited tank and 1-year limited parts warranty

    • Dura-Power™ light duty commercial electric water heaters are built to the same high quality standards as our gas models. The Dura-Power™ DEN (standard upright) and DEL (lowboy) series is available with tank capacities from 6 through 119-gallons. They can be installed for non-simultaneous and single element operation, or for simultaneous dual-element operation (maximum input up to 12.2 KW). A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    55 Gallons
    Rated Storage Volume
    55 Gallons
    UEF
    0.93
    Power Source
    ELECTRIC
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    Water Connection Location
    TOP
    First Hour Rating
    72 Gallons
    ASME Certified
    No
    Destination Country
    US
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    COMMERCIAL
    Shipping Height
    64.25"
    Shipping Length
    24.63"
    Shipping Width
    27.38"
    Side Loop
    No
    Voltage
    208
    Dimension & Venting
    Type
    Water Heater
    Diameter
    24 in."
    Shipping Weight
    174.4lbs
