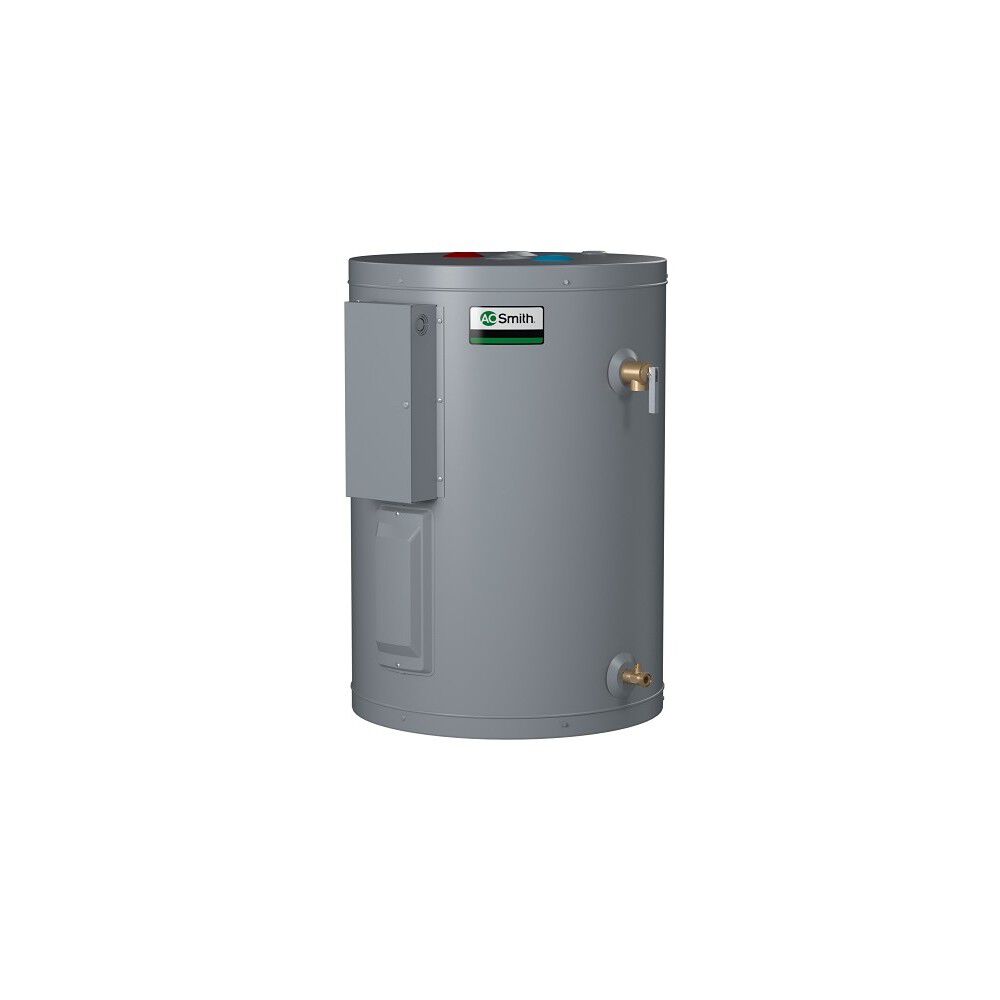

Dura-Power™ Light Duty Commercial Electric Water Heater

Model DEL-40 110
Capacity (Gallons)
Height Classification
Advanced Options
Max Wattage
Voltage

  • Designed for use as a recovery water heater
  • Glass lining provides super protection against corrosion
  • Durable commercial-grade copper heating elements
  • Product Details
    • Designed for use as a recovery water heater
    • Glass lining provides super protection against corrosion
    • Durable commercial-grade copper heating elements
    • Factory installed terminal block for ease of installation
    • Temperature controls located behind hinged control compartment door for quick, easy access.
    • Meets ASHRAE/IES 90.1-2004
    • Commercial-grade anode rod provides maximum tank protection from corrosion
    • Most models convert to three-phase or single-phase in field for easy installation
    • 3-year limited tank and 1-year limited parts warranty

    • Dura-Power™ commercial electric water heaters are built to the same high quality standards as our gas models. The Dura-Power™ DEN (standard upright) and DEL (lowboy) series is available with tank capacities from 6 through 119-gallons. They can be installed for non-simultaneous and single element operation (maximum input up to 6 KW), or for simultaneous dual-element operation (maximum input up to 12 KW).

      The 30 through 50 gallon DEL and DEN models have UEF ratings of .92.

      A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    36 Gallons
    Thermal Efficiency
    98%
    Power Source
    ELECTRIC
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    Yes
    ASME Certified
    No
    Destination Country
    US
    Installation Type
    INDOOR
    Max Wattage
    6,000
    Number of Elements
    2
    Application
    COMMERCIAL
    Side Loop
    No
    Voltage
    480
    Dimension & Venting
    Type
    Water Heater
    Shipping Weight
    130lbs
