Product Details
- Pre-pressurized diaphragm operation
- Maximum working pressure 100 psi.
- Lightweight, double drawn steel contruction
- Heavy Duty Parabolic diaphragm
- Powder coated exterior finish with high UV resistance
- Fused water chamber with powder coated interior
- Projection welded air valve.

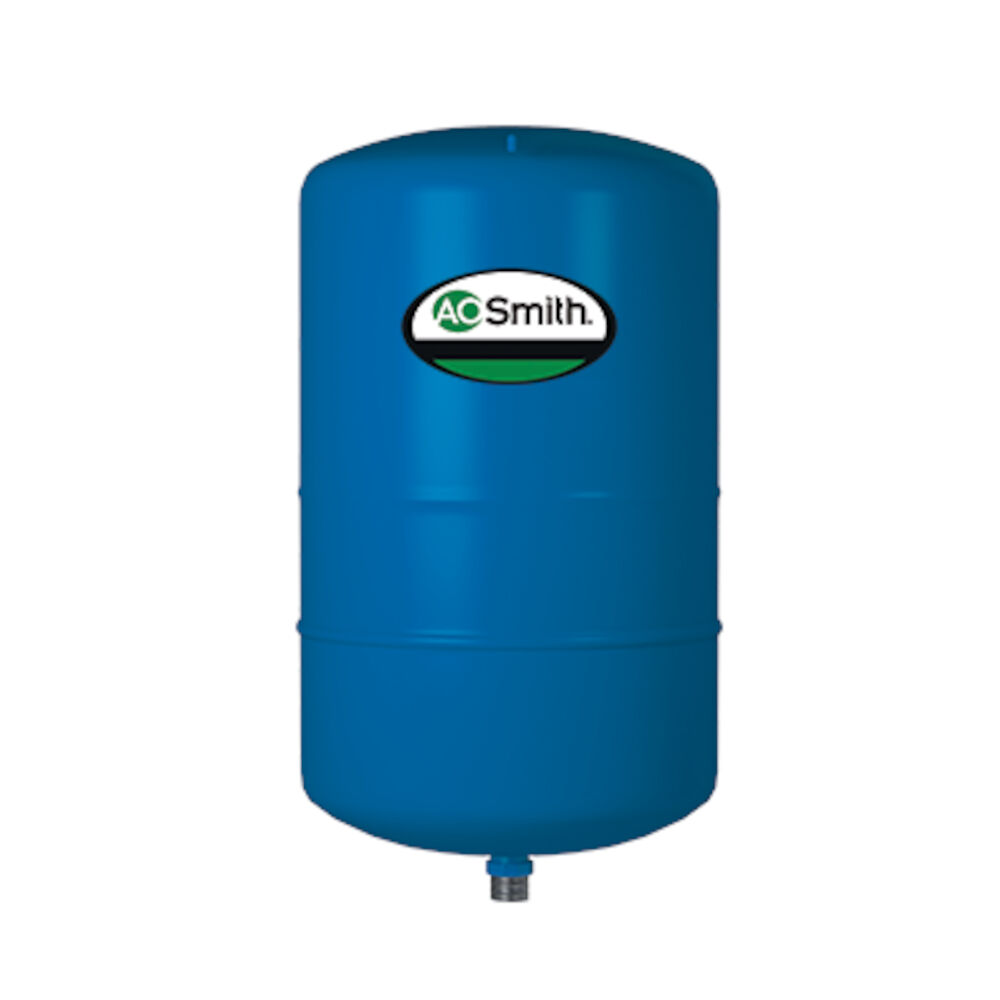

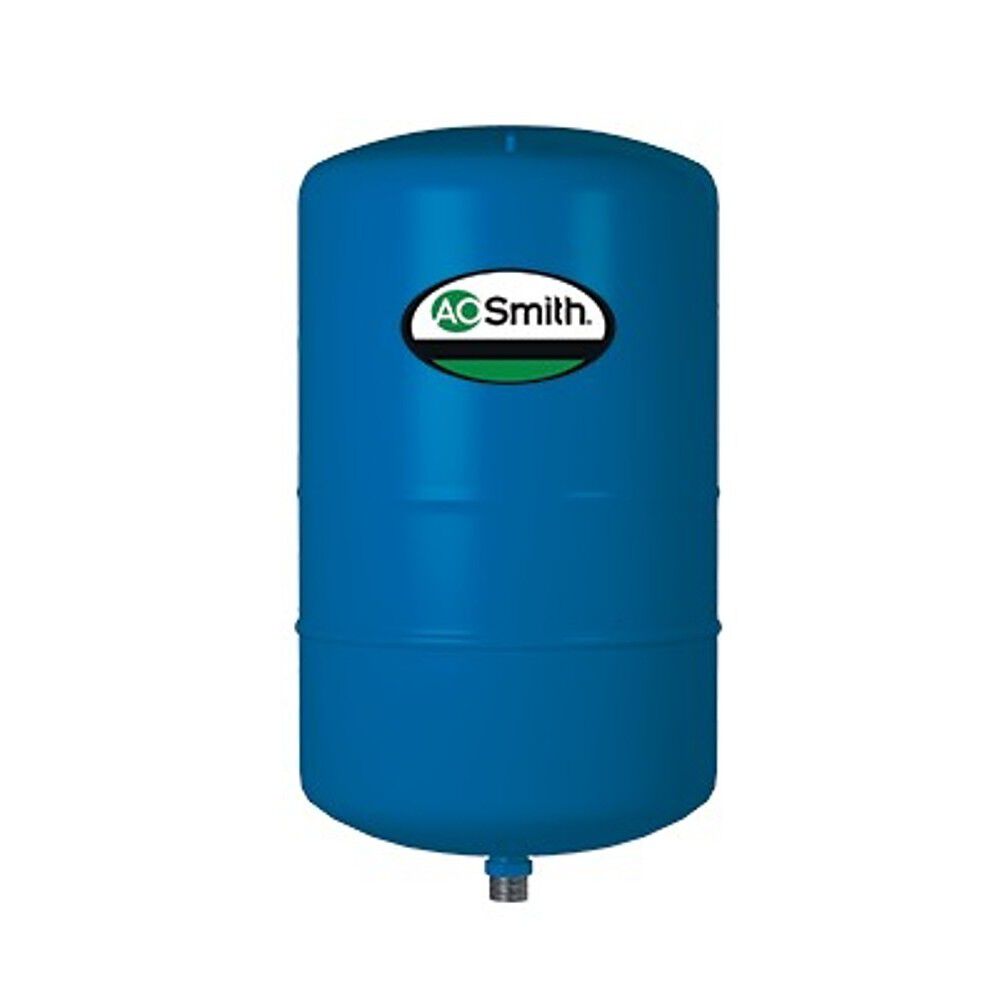

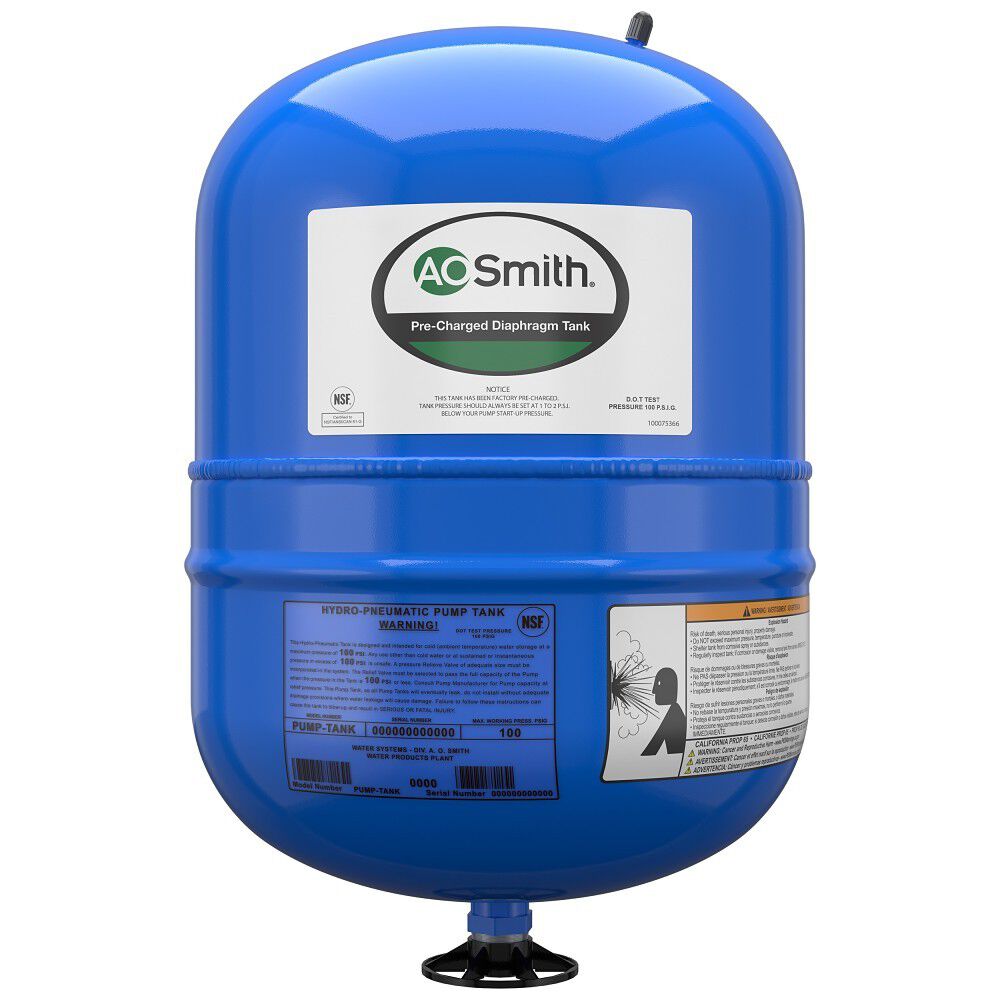

A. O. Smith PM Series Pump tanks include Inline, Free-Standing and Horizontal orientations. Multiple head construction adds structural strength and more capacity within the same diameters.
Specifications
Tech Specs
Nominal Gallon Capacity
7 Gallons
Rated Storage Volume
7.3 Gallons
Power Source
DIAPHRAGM
Limited Tank Warranty
5 Years
Limited Parts Warranty
0 Years
Water Connection Location
BOTTOM
Water Connection Size
3/4-in"
ASME Certified
No
Destination Country
US
Installation Type
BOTH
Application
RESIDENTIAL
Shipping Height
23.875"
Shipping Length
11.125"
Shipping Width
11.125"
Side Loop
No
Dimension & Venting
Type
Pump Tank
Height
23.875"
Width
11.125"
Shipping Weight
16lbs
