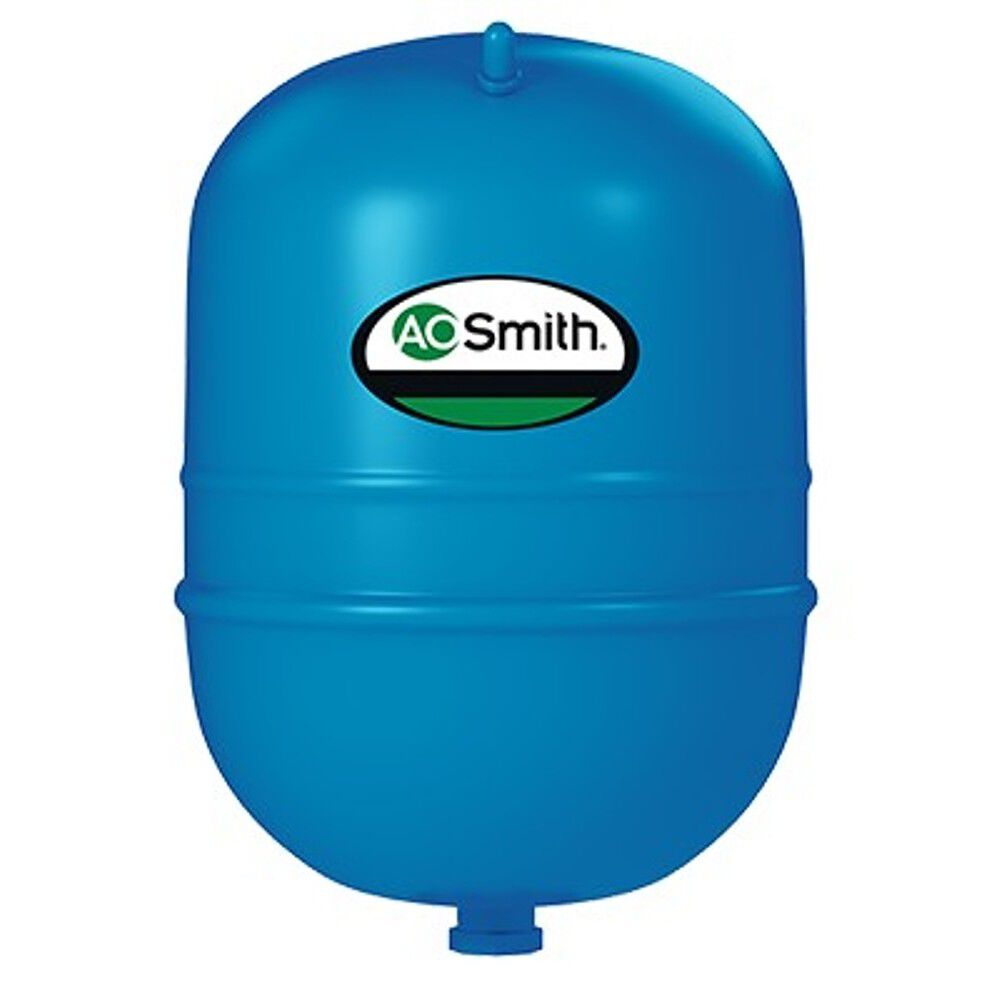

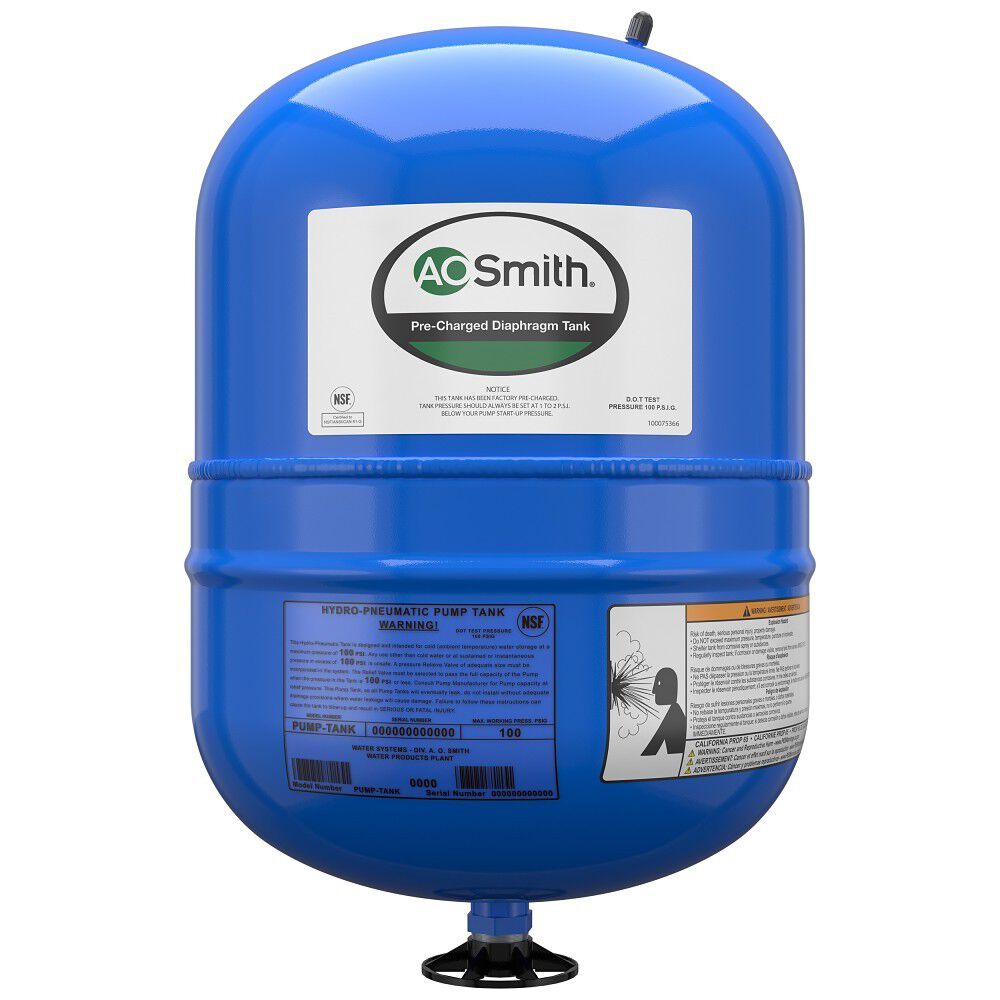

2-Gallon In-line Diaphragm Pump Tank

Model PMI-2 100
Capacity (Gallons)

  • Pre-pressurized diaphragm operation
  • Maximum working pressure 100 psi.
  • Lightweight, double drawn steel contruction

    • Find a Local Pro
    Product Details
    • Pre-pressurized diaphragm operation
    • Maximum working pressure 100 psi.
    • Lightweight, double drawn steel contruction
    • Heavy Duty Parabolic diaphragm
    • Powder coated exterior finish with high UV resistance
    • Fused water chamber with powder coated interior
    • Projection welded air valve.

      • A. O. Smith PM Series Pump tanks include Inline, Free-Standing and Horizontal orientations. Multiple head construction adds structural strength and more capacity within the same diameters.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    2 Gallons
    Rated Storage Volume
    2 Gallons
    Power Source
    DIAPHRAGM
    Limited Tank Warranty
    5 Years
    Limited Parts Warranty
    0 Years
    Water Connection Location
    BOTTOM
    Water Connection Size
    3/4-in"
    ASME Certified
    No
    Destination Country
    US
    Installation Type
    BOTH
    Application
    PT
    Shipping Height
    13.75"
    Shipping Length
    8.5"
    Shipping Width
    8.5"
    Side Loop
    No
    Dimension & Venting
    Type
    Pump Tank
    Height
    13.75"
    Width
    8.5"
    Shipping Weight
    5lbs
