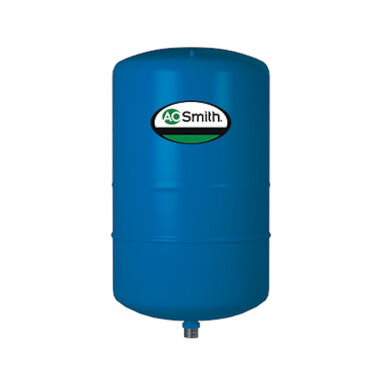

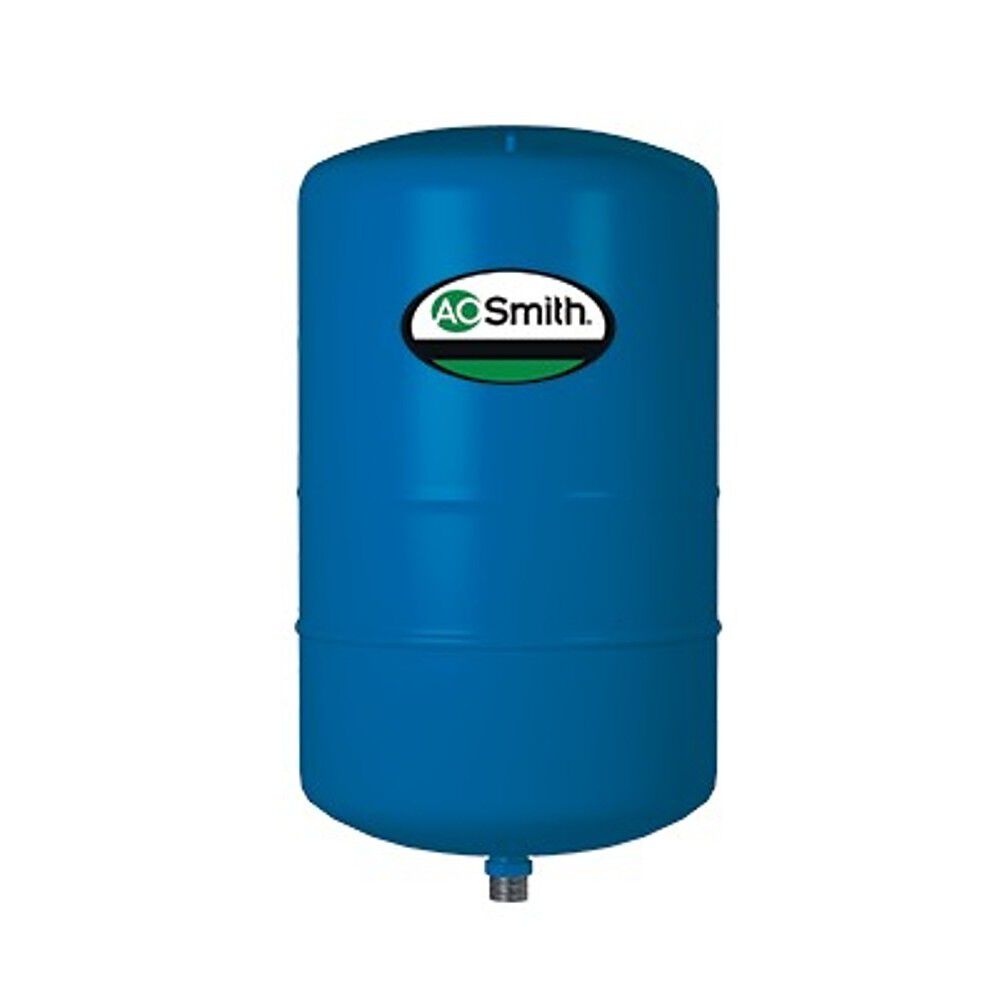

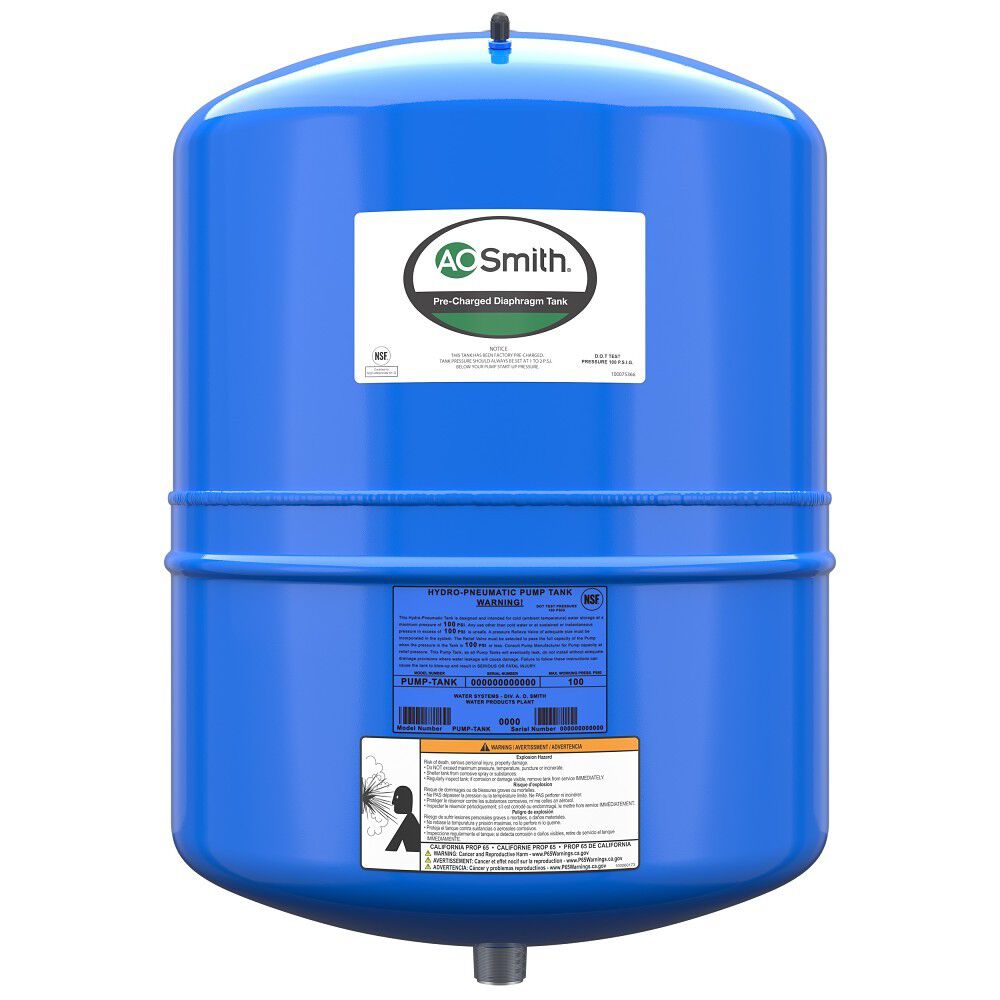

14-Gallon In-line Diaphragm Pump Tank

Model PMI-14 200
Capacity (Gallons)

  • Pre-pressurized diaphragm operation
  • Maximum working pressure 100 psi.
  • Lightweight, double drawn steel contruction

    • Find a Local Pro
    Product Details
    • Pre-pressurized diaphragm operation
    • Maximum working pressure 100 psi.
    • Lightweight, double drawn steel contruction
    • Heavy Duty Parabolic diaphragm
    • Powder coated exterior finish with high UV resistance
    • Fused water chamber with powder coated interior
    • Projection welded air valve.

      • A. O. Smith PM Series Pump tanks include Inline, Free-Standing and Horizontal orientations. Multiple head construction adds structural strength and more capacity within the same diameters.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    14 Gallons
    Rated Storage Volume
    13.9 Gallons
    Power Source
    DIAPHRAGM
    Limited Tank Warranty
    5 Years
    Limited Parts Warranty
    0 Years
    Water Connection Location
    BOTTOM
    Water Connection Size
    1"
    ASME Certified
    No
    Destination Country
    US
    Installation Type
    BOTH
    Application
    PT
    Shipping Height
    26"
    Shipping Length
    16"
    Shipping Width
    16"
    Side Loop
    No
    Dimension & Venting
    Type
    Pump Tank
    Height
    26"
    Width
    16"
    Shipping Weight
    24lbs
