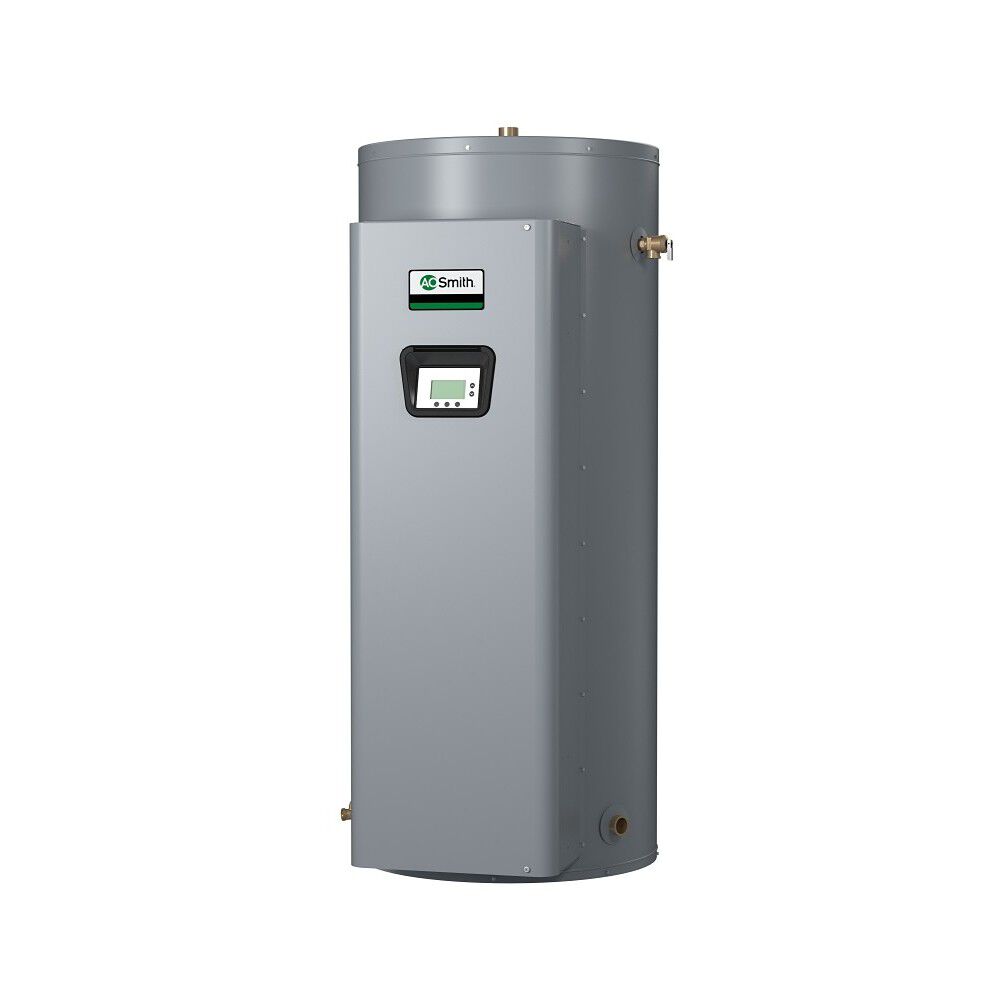

Gold Xi Series 119-Gallon Commercial Electric Water Heater

Model DVE-120A 100
Capacity (Gallons)
ASME Indicator

  • Designed for use as a recovery water heater
  • Meets ASHRAE/IES 90.1-2004
  • Heavy-duty incoloy sheathing elements provide excellent protection against oxidation and scaling
  • Product Details
    • Designed for use as a recovery water heater
    • Meets ASHRAE/IES 90.1-2004
    • Heavy-duty incoloy sheathing elements provide excellent protection against oxidation and scaling
    • Power Circuit fusing
    • Factory installed terminal block for ease of installation
    • Advanced electronic control for ease of operations and diagnostics
    • Dual commercial-grade anode rods for maximum corrosion protection
    • Simplified circuitry, color coded for ease of service
    • 3-year limited tank and 1-year limited parts warranty

    • Gold Xi DVE displays detailed operational and diagnostic information. Fault or alert messages appear if an operational issue occurs. Last 9 fault and alert messages saved with time stamp. Control system automatically lowers the operating set point by a programmed value during user-defined time periods. Helps reduce operating costs during unoccupied or low demand periods. They can be used as recovery water heaters for hot water supply service or as boosters for supplying sanitizing rinse water for dish washing. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    119 Gallons
    Rated Storage Volume
    108 Gallons
    Thermal Efficiency
    98%
    Power Source
    ELECTRIC
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    Yes
    Water Connection Size
    0.75"
    ASME Certified
    Yes
    ASME Stamp
    HLW
    Blanket Included
    No
    Destination Country
    US
    Height to T&P
    54.65
    Installation Type
    INDOOR
    Max Wattage
    54,000
    Number of Elements
    9
    Application
    COMMERCIAL
    Shipping Height
    71"
    Shipping Length
    38.5"
    Shipping Width
    33.5"
    Side Loop
    No
    Voltage
    480
    Dimension & Venting
    Type
    Water Heater
    Height
    62.25"
    Diameter
    29.5 in."
    Width
    29.5"
    Shipping Weight
    450lbs
