Product Details
- ENERGY STAR® Qualified
- High efficiency operation with up to 0.90 UEF
- Includes Leak Detection smart sensor that alerts audibly and visually if a leak occurs
- Unique side fired Ultra-Low NOx gas burner, meets or exceeds emission requirements in California & Utah
- Power Vent and Power Direct Vent with a single design
- Side-Mounted Hot and Cold Recirculating taps
- Spiral heat exchanger keeps hot combustion gases in the tank longer to lengthen the heat transfer cycle
- Blue Diamond® glass coating provides superior corrosion resistance compared to industry standard glass lining.
- Thermal Efficiency up to 93%
- 8-year Limited Tank and Parts Warranty

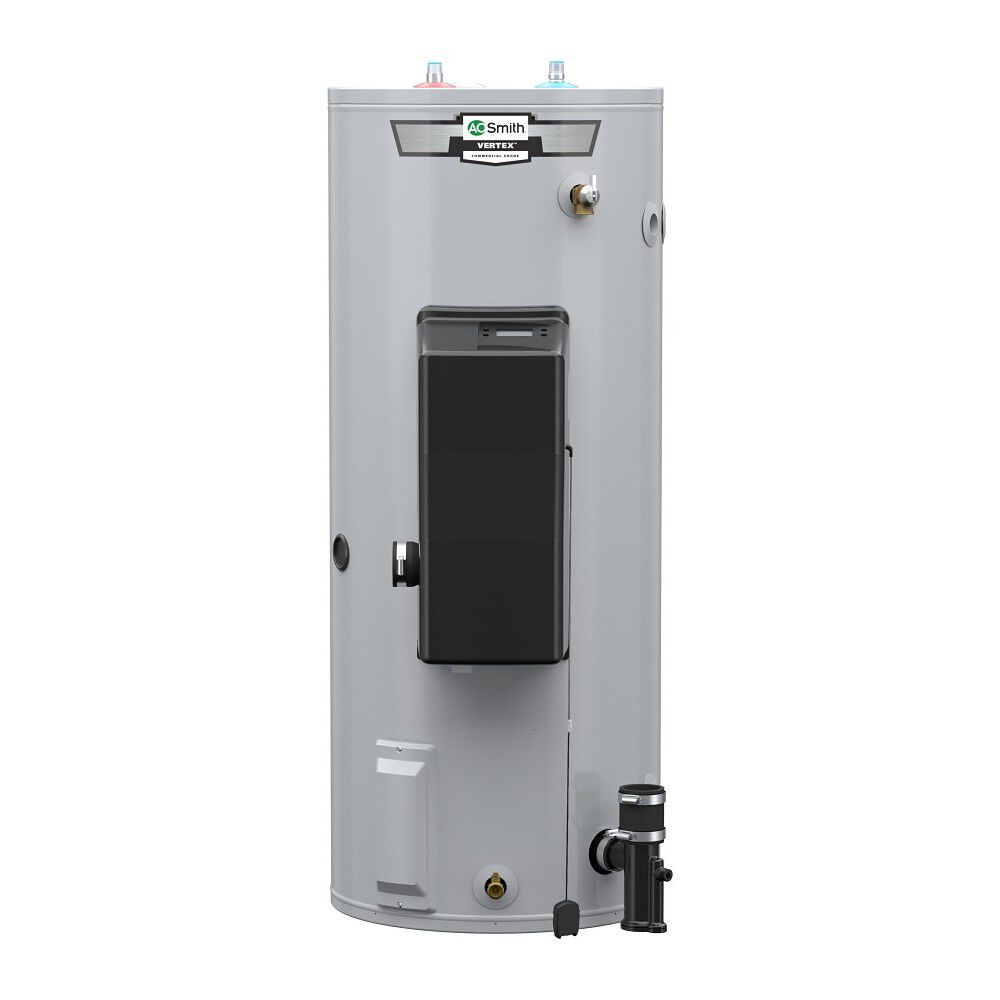

Commercial-grade hot water delivery is now more attainable than ever. The Vertex® HV provides
flexible, powerful and highly efficient performance to the everyday home. The fully condensing Vertex
design is so advanced, it can deliver “continuous hot water for shower after shower”at a constant
flow of over 2.5 gallons per minute.*
*Continuous hot water based on 65,000 BTU unit, 2.8
GPM continuous flow with a 65°F inlet water temperature,
110°F outlet temperature, and a unit installed per the
manufacturer’s instructions.
Specifications
Tech Specs
Nominal Gallon Capacity
50 Gallons
Rated Storage Volume
47.6 Gallons
UEF
0.9
Maximum BTUs
65,000
Power Source
GAS
Limited Tank Warranty
8 Years
Limited Parts Warranty
8 Years
T&P Relief Valve
Yes
Water Connection Location
TOP
Emissions
Ultra-Low NOx
First Hour Rating
118 Gallons
ASME Certified
No
Amperes
5
Destination Country
US
ENERGY STAR® Certified
true
Fuel Source
NATURAL
Installation Type
INDOOR
Application
RESIDENTIAL
Shipping Height
62.88"
Shipping Length
31"
Shipping Width
28.4"
Side Loop
Yes
Voltage
120
Dimension & Venting
Type
Water Heater
Diameter
22 in."
Shipping Weight
246lbs
Vent Type
Power Vent
