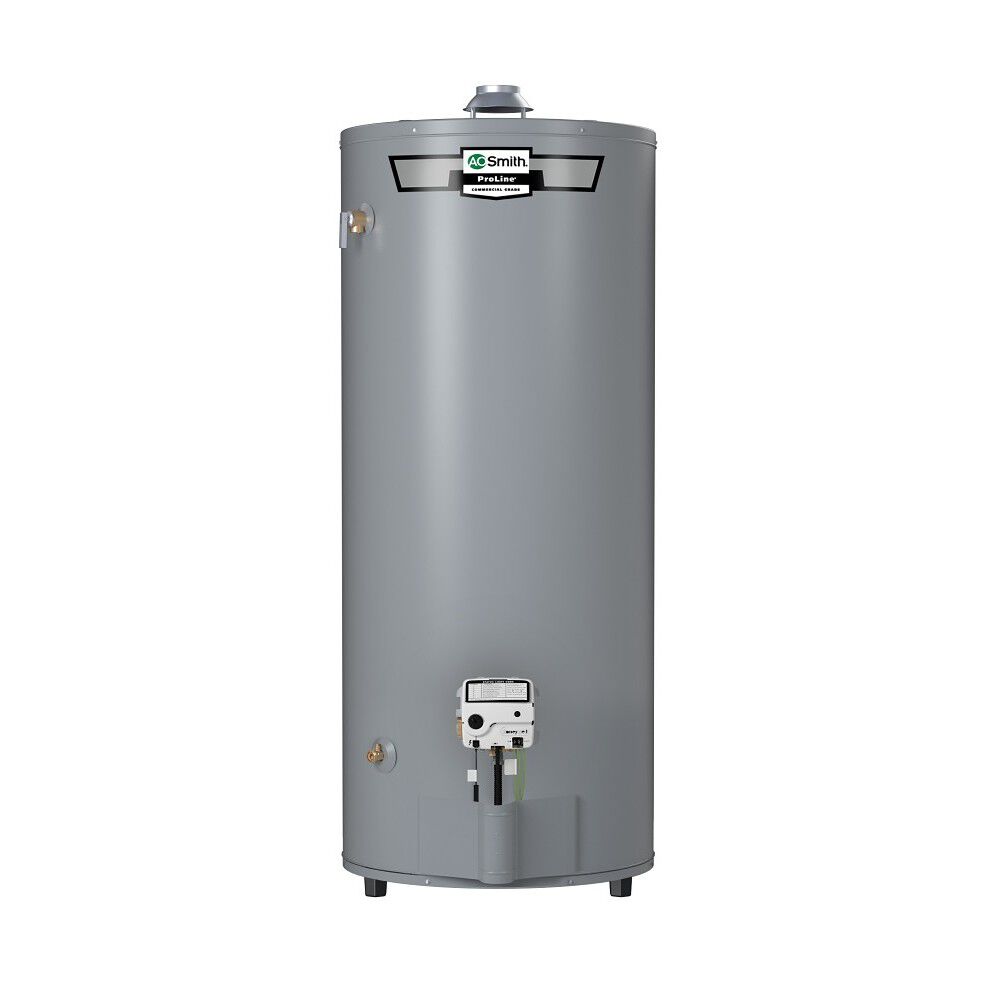

Conservationist® 74-Gallon Atmospheric Vent Commercial Gas Water Heater

Model BT-80 400
Capacity (Gallons)
Fuel Source

  • Delivers 73 GPH at 100°F Rise
  • Fully automated controls with safety shutoff
  • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
  • Product Details
    • Delivers 73 GPH at 100°F Rise
    • Fully automated controls with safety shutoff
    • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
    • Innovative anode design delivers advanced tank corrosion protection
    • Push-button piezo ignitor makes lighting pilot fast & easy
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • Enhanced flow brass drain valve designed for easy maintenance and easy operation
    • Eco-Friendly non-CFC foam insulation, external heat traps and specially designed combustion chamber combine for maximum savings on operating costs
    • Factory-installed heat trap nipples for faster installation
    • 3-year limited tank and 1-year limited parts warranty

    • Conservationist® BT-80 features fully automated controls with safety shutoff that is accurate, dependable control system requires no electric connections. BT-80 models provide reliable, efficient service for applications such as office buildings and duplex/fourplex apartment homes. BT-80 uses 75,100 BTU/h of gas to deliver 73 GPH at 100°F rise. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    74 Gallons
    Rated Storage Volume
    71 Gallons
    Thermal Efficiency
    80%
    Maximum BTUs
    75,100
    Power Source
    GAS
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    ASME Certified
    No
    Destination Country
    US
    Fuel Source
    NATURAL
    Installation Type
    INDOOR
    Application
    COMMERCIAL
    Recovery Rise at 90°F
    81
    Shipping Height
    60.75"
    Shipping Length
    29"
    Shipping Width
    31.25"
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Diameter
    26.39 in."
    Shipping Weight
    270lbs
