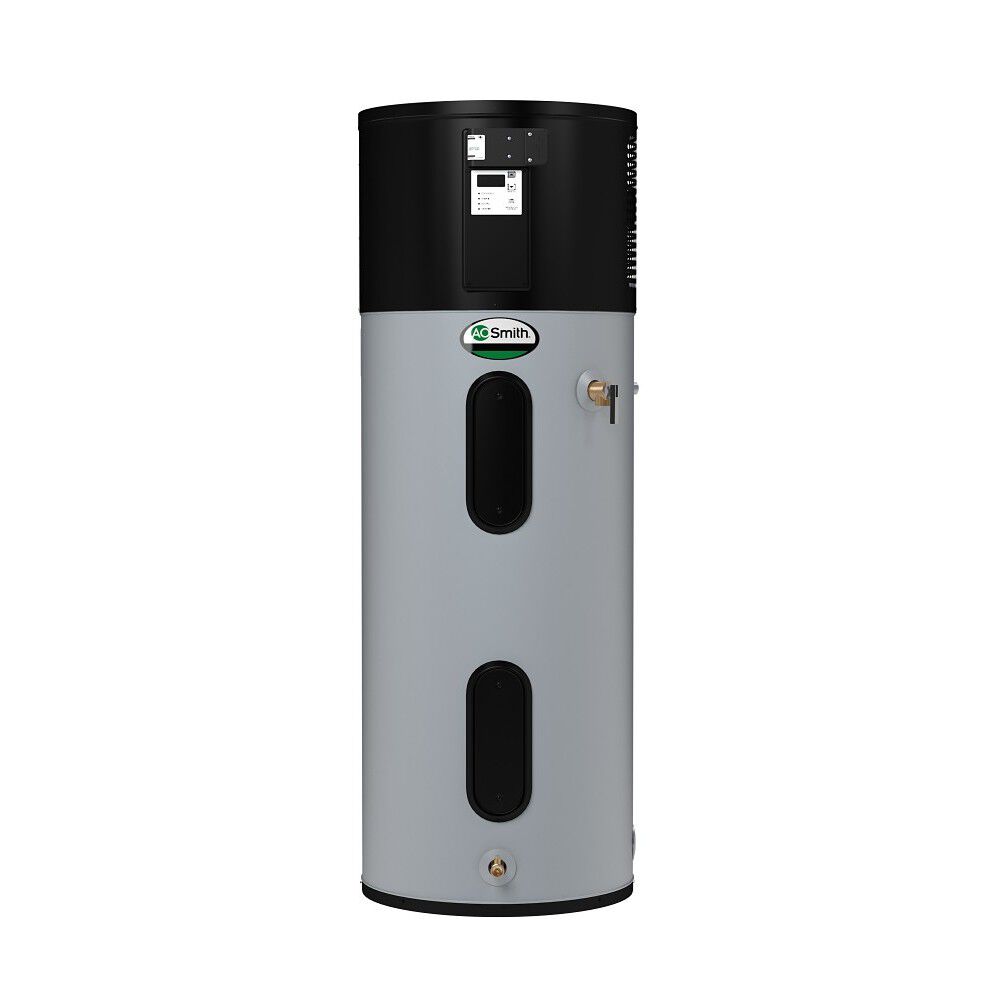

ProLine XE® Voltex® 66-Gallon Hybrid Electric Heat Pump Water Heater - Smart Grid Ready

Name: ProLine XE® Voltex® 66-Gallon Hybrid Electric Heat Pump Water Heater - Smart Grid Ready
SKU: HPTU-66CTA

Model HPTU-66CTA 130

Capacity (Gallons)

Limited Tank Warranty

Delivers 79-gallon first hour rating

Save up to $306 per year or $3,000 over 10 years in energy costs compared to standard electric water heaters

Equipped with a CTA-2045-A (AC) utility communication port to allow for participation in utility demand response programs for added energy savings

Find a Local Pro

What to Expect from this Model

Based on location results for Columbus, OH 43215

Edit Location / Advanced Settings

Features & Benefits

Product Details

Delivers 79-gallon first hour rating
Save up to $306 per year or $3,000 over 10 years in energy costs compared to standard electric water heaters
Equipped with a CTA-2045-A (AC) utility communication port to allow for participation in utility demand response programs for added energy savings
Choose from Efficiency, Hybrid, or Electric modes to match heating requirements to environmental conditions
Versatile installation is ideal for basements or garage installations; the compressor transfers heat to the water while dehumidifying and cooling the ambient air
Dual long-lasting backup heating elements provide faster recovery during times of high hot water use
Integrated Dry Fire Protection ensures the tank is full of water during start up to prevent damage
CoreGard anode rod features a stainless steel core for superior tank protection compared to a standard anode rod
Washable air filter is easily removed for routine cleaning
10-year limited tank and parts warranty

The Voltex® Hybrid Electric Heat Pump reduces water heating cost by up to 73% through an innovative design that pulls environmental heat while dehumidifying and cooling the ambient air at the same time. The HPTU-66CTA is smart grid ready for CTA-2045-A utility communication. It uses heat pump technology to deliver tremendous savings by generating heat through the heat pump technology instead of the heating elements. In addition to the heat pump technology, this model also has two heating elements that help the water heater recover quickly during periods of high demand. This Heat Pump is Northwest Energy Efficiency Alliance (NEEA) qualified. This ProLine® XE water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. All of these features are accompanied by a 10-year limited tank warranty. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

Specifications
