- Heat pump storage tanks are optimized for heat pump domestic hot water applications requiring long duration recovery periods
- Proprietary stratification design provides 95% draw down
- Commercial-grade magnesium anode rods provide additional protection against corrosion
- All tanks are constructed to the requirements of the ASME
- 5” thick foam insulation with a value of R30, exceeds minimum ASHRAE and U. S. Department of Energy thermal insulation requirements
- Heavy gauge steel cabinet with high quality paint for added durability
- Furnished with two 3” bolted flange circulating connections for ease of installation
- 125 PSI ASME standard working pressure
- 10-year limited tank / 1-year limited parts warranty

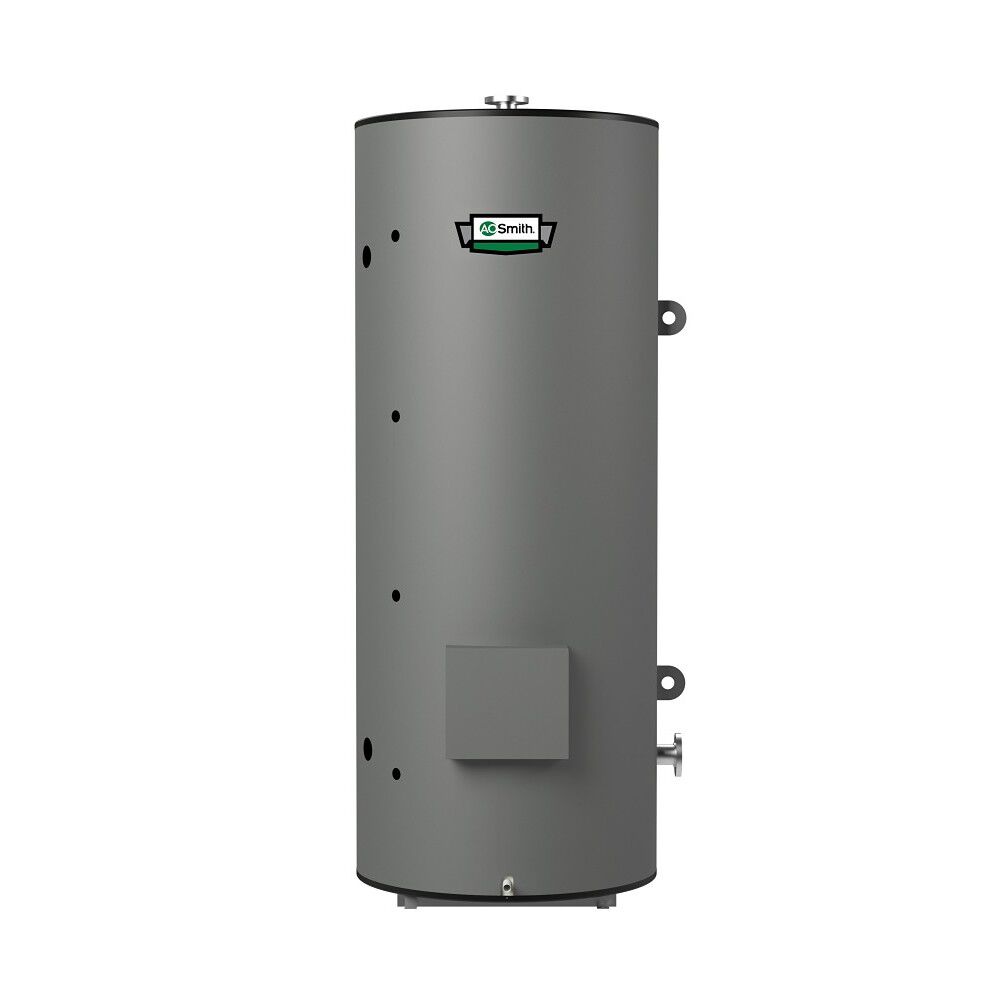

These storage tanks are optimized for heat pump domestic hot water applications requiring long duration recovery periods. Designed to take full advantage of heat pump systems, a unique baffle reduces water turbulence into and out of the tank to prevent disruption of the stratified layers. This allows for draw down of 95%, delivering more hot water from a given capacity. R30 insulation value helps to significantly reduce standby loss. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.
