Product Details
- Maximum Working Pressure 125 PSIG
- Rolled steel construction provides added structural strength and more capacity within the same diameters
- Fused glasslining, the industry’s most time-tested system for protection of tanks
- 1-1/4" NPT spud on top for motor mount or retention tank connections
- 1/4" switch or gauge tapping on the air side of the tank
- Electrostatically applied powder-coated exterior for maximum sunlight (UV) resistance
- Anodic Protection
- 3-Year Limited Warranty

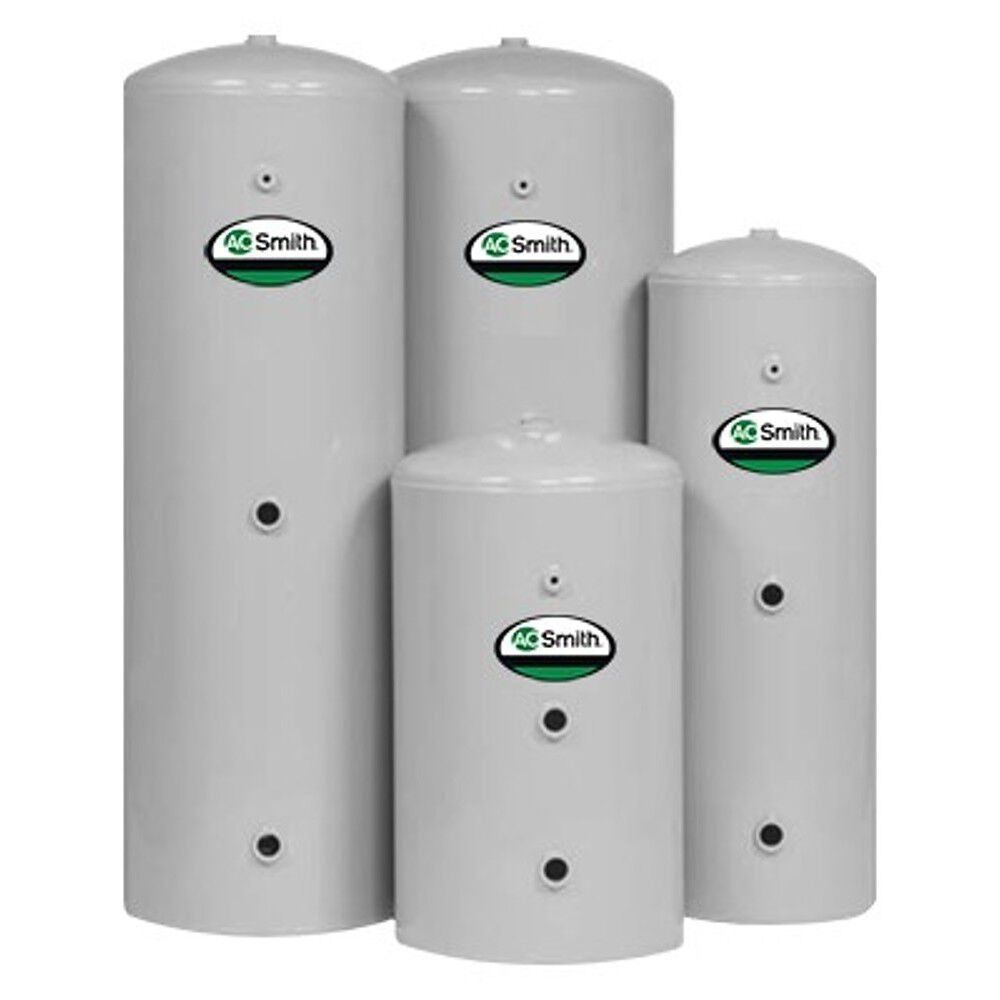

“Glasslining,” a porcelain protective coating to a steel tank interior, is the plumbing industry’s most time-tested system for protection of tanks. A. O. Smith Glasslined Hydropneumatic Pump Tanks feature rolled-steel construction, and every A. O. Smith Tank is made in the U.S.A. Other A. O. Smith features include a 1-1/4" NPT spud on top for motor mount or retention tank connections, a 1/4" switch or gauge tapping on the air side of the tank, and full-size 1-1/4" connections at all needed locations.
Specifications
Tech Specs
Nominal Gallon Capacity
120 Gallons
Rated Storage Volume
120 Gallons
Power Source
ATMOSPHERIC
Limited Tank Warranty
3 Years
Limited Parts Warranty
0 Years
Water Connection Location
SIDE
Water Connection Size
1.25"
ASME Certified
No
Destination Country
US
Installation Type
BOTH
Application
PT
Shipping Height
64.25"
Shipping Length
24.75"
Shipping Width
24.75"
Side Loop
No
Dimension & Venting
Type
Pump Tank
Height
64.25"
Width
24.75"
Shipping Weight
186.43lbs
