Product Details
- Pre-pressurized diaphragm operation
- Maximum working pressure 100 psi.
- Multi-dome construction from lightweight, drawn steel.
- Heavy Duty Parabolic diaphragm
- Exclusive no-weld Rust-Guard® steel base design
- Fused polypropylene lined interior water chamber
- NSF 612G/372 galvanized lead-free connection
- Projection welded air valve.
- 5-year limited warranty

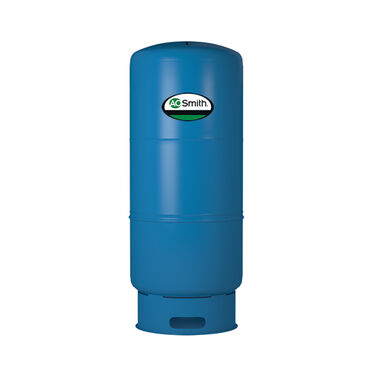

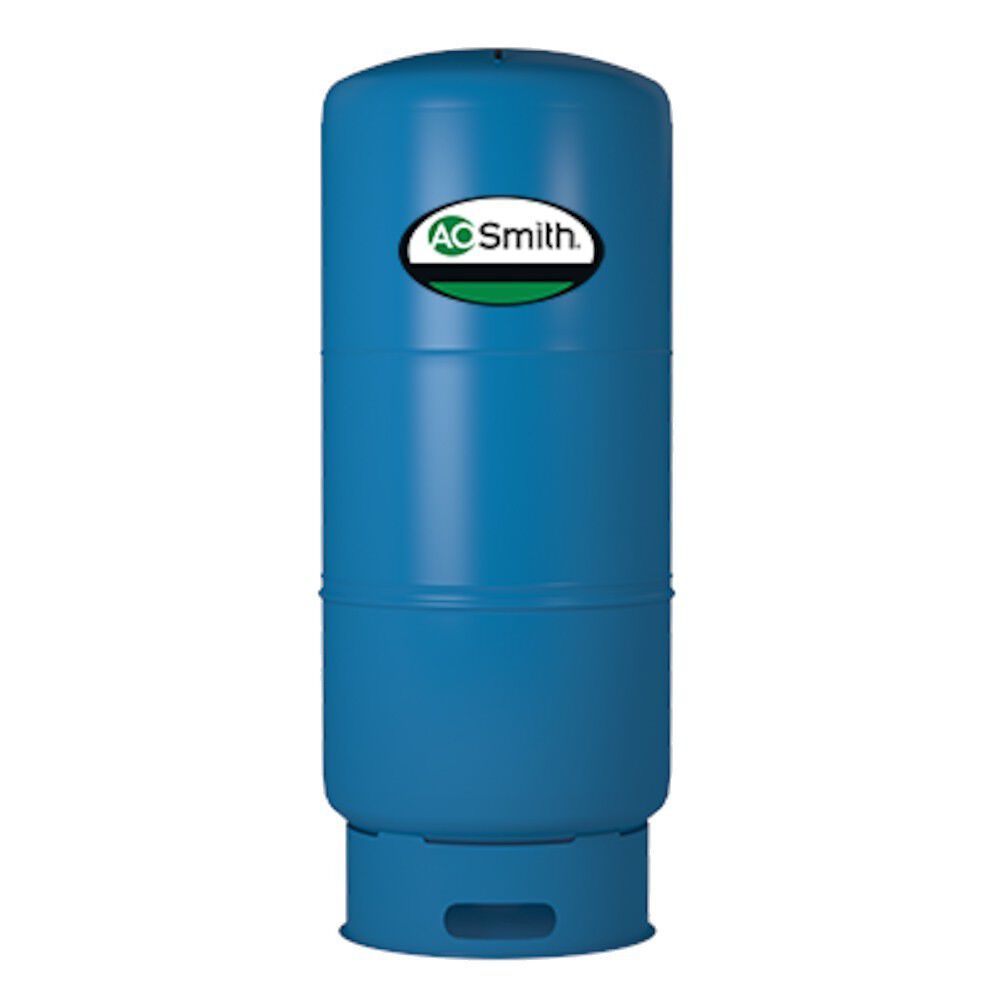

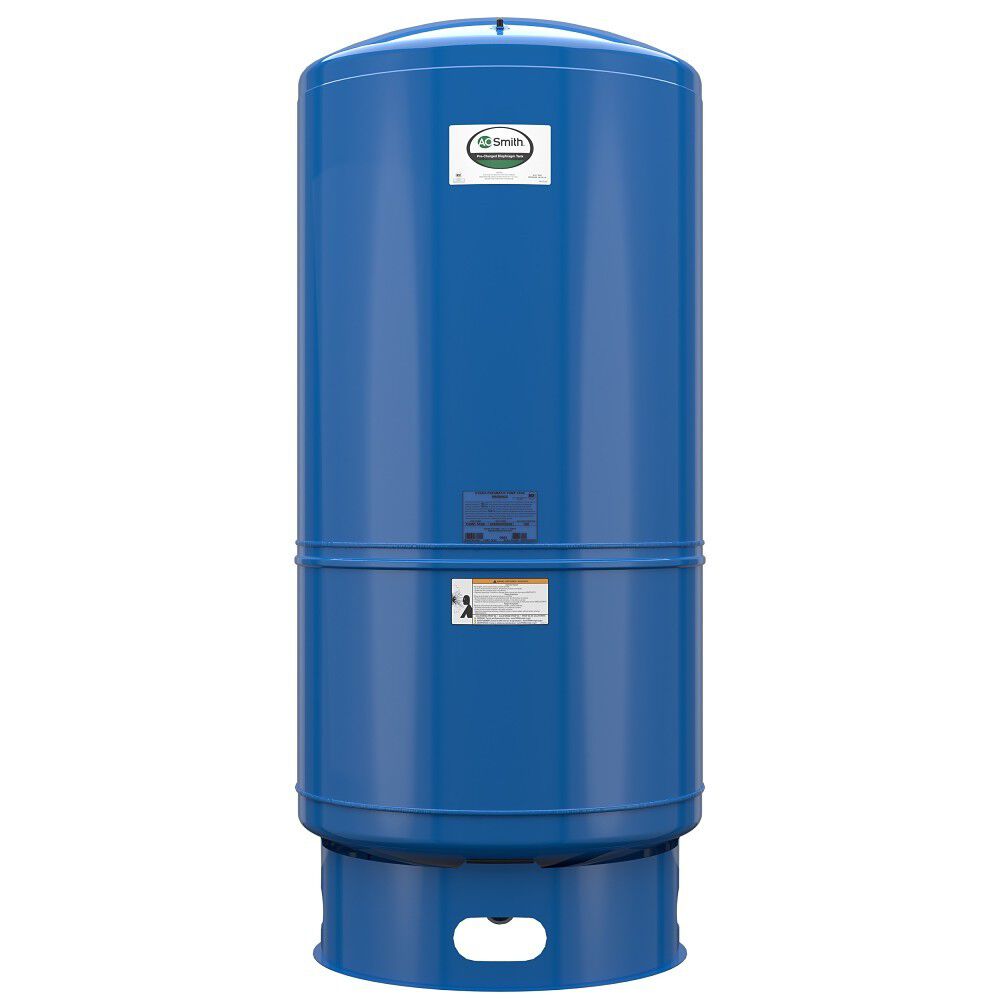

A. O. Smith PM Series Pump tanks include Inline, Free-Standing and Horizontal orientations. Multiple head construction adds structural strength and more capacity within the same diameters.
Specifications
Tech Specs
Nominal Gallon Capacity
86 Gallons
Rated Storage Volume
83.5 Gallons
Power Source
DIAPHRAGM
Limited Tank Warranty
5 Years
Limited Parts Warranty
0 Years
Water Connection Location
BOTTOM
Water Connection Size
1.25"
ASME Certified
No
Destination Country
US
Installation Type
BOTH
Application
RESIDENTIAL
Shipping Height
47.5"
Shipping Length
27"
Shipping Width
27"
Side Loop
No
Dimension & Venting
Type
Pump Tank
Height
47.5"
Width
27"
Shipping Weight
116lbs
