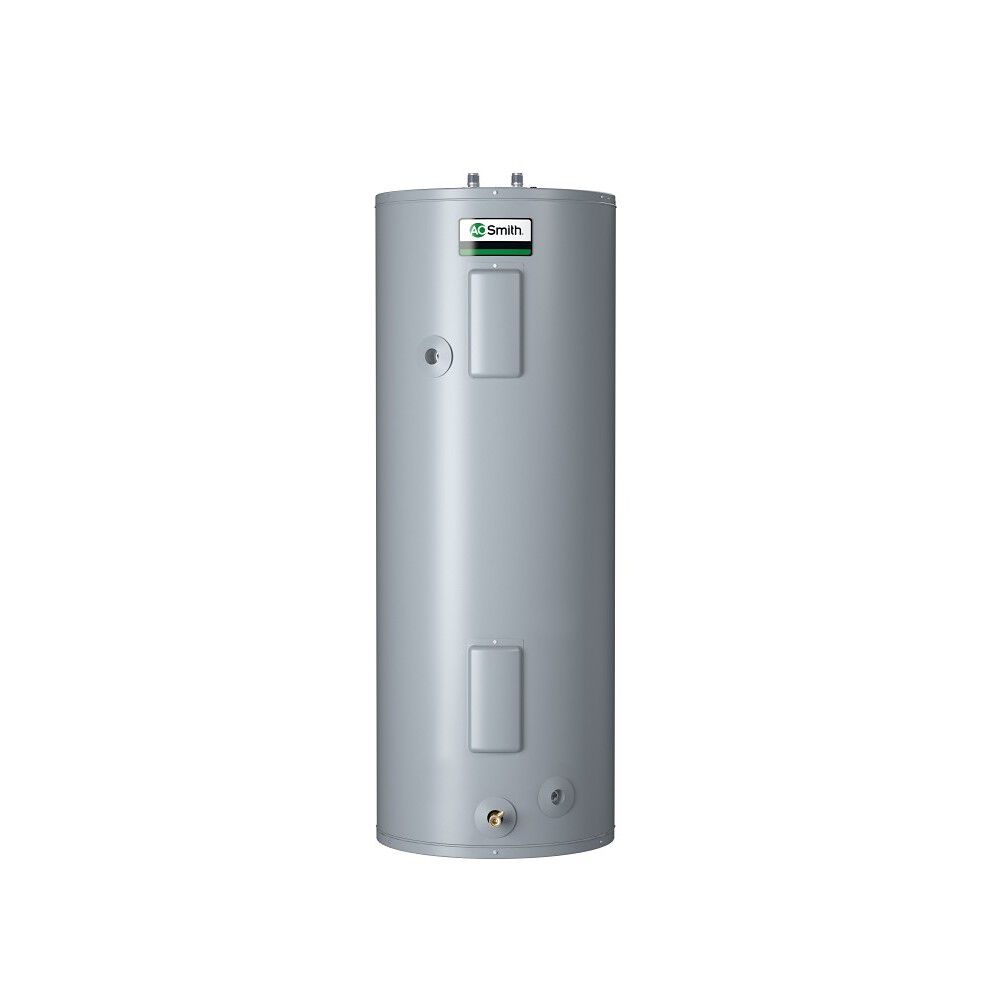

ProLine® 65-Gallon Direct Solar Water Heater Storage Tank

Model SUN-65 100
Capacity (Gallons)

  • Single 4,500-watt heating element with low-watt density design prolongs element life and maximizes efficiency
  • Open loop or closed loop solar water heater system install options available (solar panels not included)
  • Product Details
    • Single 4,500-watt heating element with low-watt density design prolongs element life and maximizes efficiency
    • Open loop or closed loop solar water heater system install options available (solar panels not included)
    • Prewired for surface mount temperature sensor (sensor supplied separately)
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • DynaClean™ automatic cleaning system protects against sediment build-up
    • Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Commercial-grade brass drain valve for durable and easy operation
    • CSA Certified and ASME Rated T&P Relief Valve, Factory-Installed
    • 6-year limited tank and parts warranty

    • The ProLine® 65-gallon direct solar water heaters are designed for installation as a part of a direct (open loop) solar water heating system or for use with external heat exchangers in closed loop systems. The SUN-65 provides storage for the hot water produced by the solar collectors and a supplementary electric heating element that maintains consistent water temperature during periods when solar energy is not available. Count on A. O. Smith for innovative products that provide hot water solutions for residential renewable energy applications. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. This model also includes built-in Dry-Fire protection to protect the heating elements from damage during initial start up. All of these features are accompanied by a 6-year limited tank warranty. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    66 Gallons
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    Water Connection Location
    TOP
    ASME Certified
    No
    Destination Country
    US
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    1
    Shipping Height
    63.25"
    Shipping Length
    25.44"
    Shipping Width
    23.31"
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Diameter
    22 in."
    Shipping Weight
    152lbs
