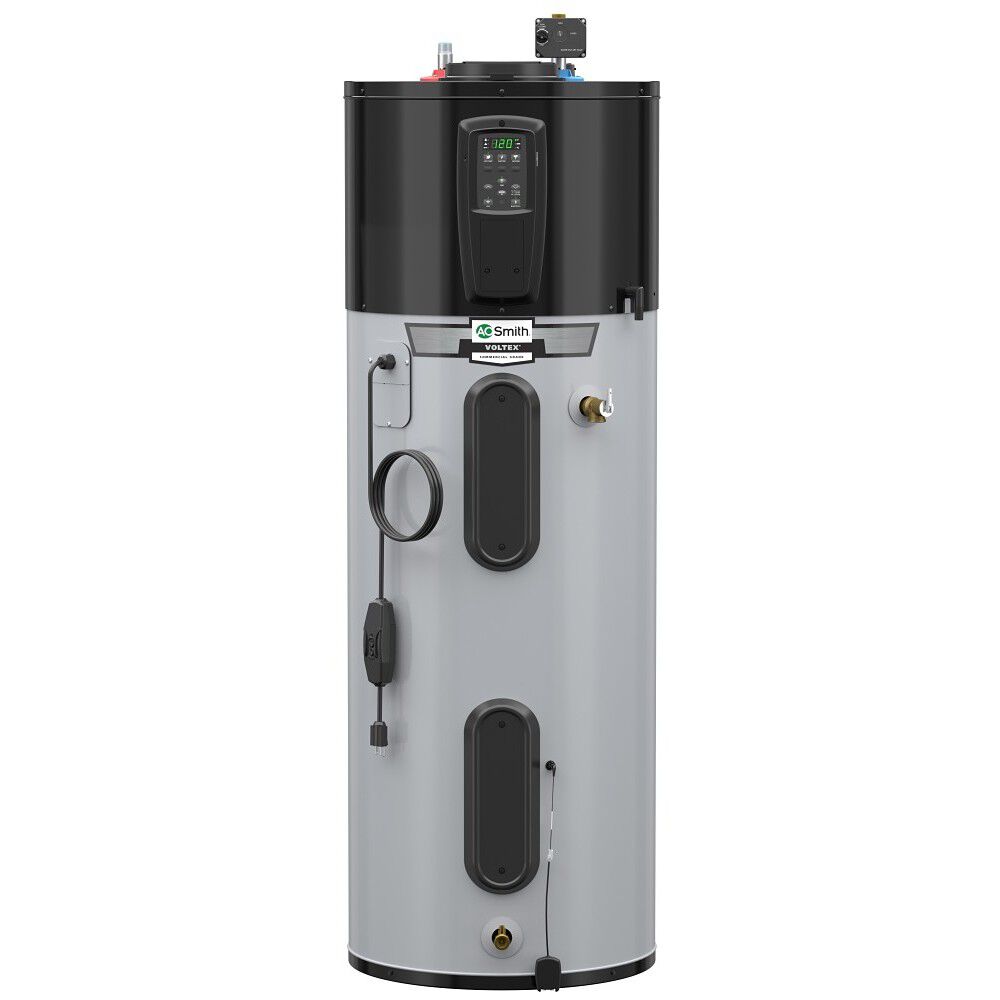

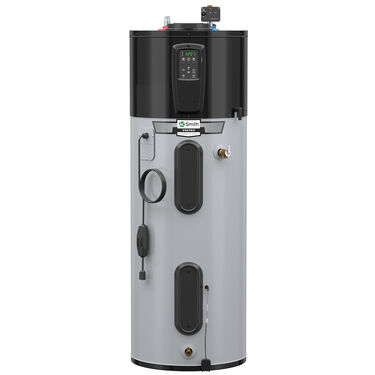

Voltex® 120V Plug-In 80-Gallon Hybrid Electric Heat Pump

Model HPTV-80 200
Capacity (Gallons)

  • Easy Installation - Simply plugs into a standard 120 volt wall outlet. Top water connections make it easy to replace an existing gas water heater. The Voltex® 120V also has smaller room size requirements and integrated duct adapters for installation in confined spaces.
  • Whisper-Quiet Operation - Operation at 45 dBA. No accessory vibration isolation kit required.
  • Leak Protection Technology - The smart sensor alerts the user in the event of a leak. The included water shutoff valve automatically closes when a leak is detected to block the cold water supply to reduce property damage.

    • Find a Local Pro
    What to Expect from this Model
    modal-clock
    tooltip
    Number of minutes you can enjoy a shower before running out of hot water. Assumes a 2.1 GPM flow rate
    47.8 minutes
    single shower length
    modal-frame
    tooltip
    Number of back-to-back showers you can take without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    6 showers
    back-to-back
    modal-frame
    tooltip
    Number of showers you can take at the same time without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    4.4 showers
    at the same time
    modal-tank-capacity
    tooltip
    Biggest tub this water heater will fill without running out of hot water. Assumes a 5.0 GPM flow rate, and a 67% fill level
    131 gallons
    max tub size
    modal-cost
    tooltip
    The estimated annual cost to operate this water heater in your location
    $161/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    modal-edit
    Edit Location / Advanced Settings
    Product Details
    • Easy Installation - Simply plugs into a standard 120 volt wall outlet. Top water connections make it easy to replace an existing gas water heater. The Voltex® 120V also has smaller room size requirements and integrated duct adapters for installation in confined spaces.
    • Whisper-Quiet Operation - Operation at 45 dBA. No accessory vibration isolation kit required.
    • Leak Protection Technology - The smart sensor alerts the user in the event of a leak. The included water shutoff valve automatically closes when a leak is detected to block the cold water supply to reduce property damage.

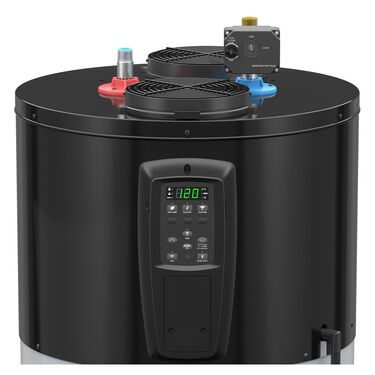

    • Easy To Control - Digital control makes it simple to set to preferred water temperature. Plus the The Voltex® 120V has integrated iCOMM™ connectivity to connect through Wi-Fi or Bluetooth and control through the free A. O. Smith app.

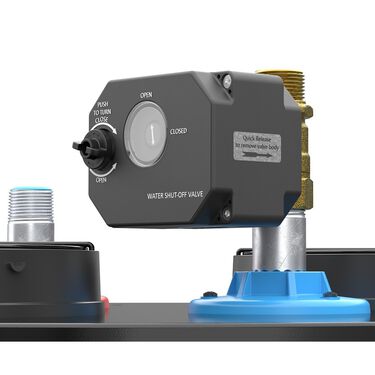

    • Automatic shut-off valve closes valve on incoming cold water inlet when leak is detected to reduce property damage
    • Equipped with a CTA-2045-A (AC) utility communication port to allow for participation in utility demand response programs for added energy savings
    • Choose from Efficiency, Hybrid, or Electric modes to match heating requirements to environmental conditions
    • Dual 900 Watt elements, 120 VAC 60Hz single phase 15 amp shared circuit
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • 10-year limited tank and parts warranty

      • The Voltex® 120V Plug-In Hybrid Electric heat pump water heater from A. O. Smith Water Heaters makes it easier than ever for consumers to electrify to an energy-efficient option to save money on their utility bills. These models plug into a standard wall outlet for easy installation and provide annual savings up to $118 on utility bills* compared to a gas water heater. They have whisper-quiet operation at just 45 dBA.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    80 Gallons
    Rated Storage Volume
    82 Gallons
    UEF
    3
    Power Source
    ELECTRIC
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    93 Gallons
    ASME Certified
    No
    NEEA Certified
    true
    Amperes
    9.38
    Destination Country
    US
    Digital Display
    true
    ENERGY STAR® Certified
    true
    Height to T&P
    46.50
    Installation Type
    INDOOR
    Max Wattage
    900
    Number of Elements
    2
    Shipping Height
    78"
    Shipping Length
    32"
    Shipping Width
    28.25"
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    72"
    Diameter
    26.5 in."
    Width
    26.5"
    Shipping Weight
    307lbs
