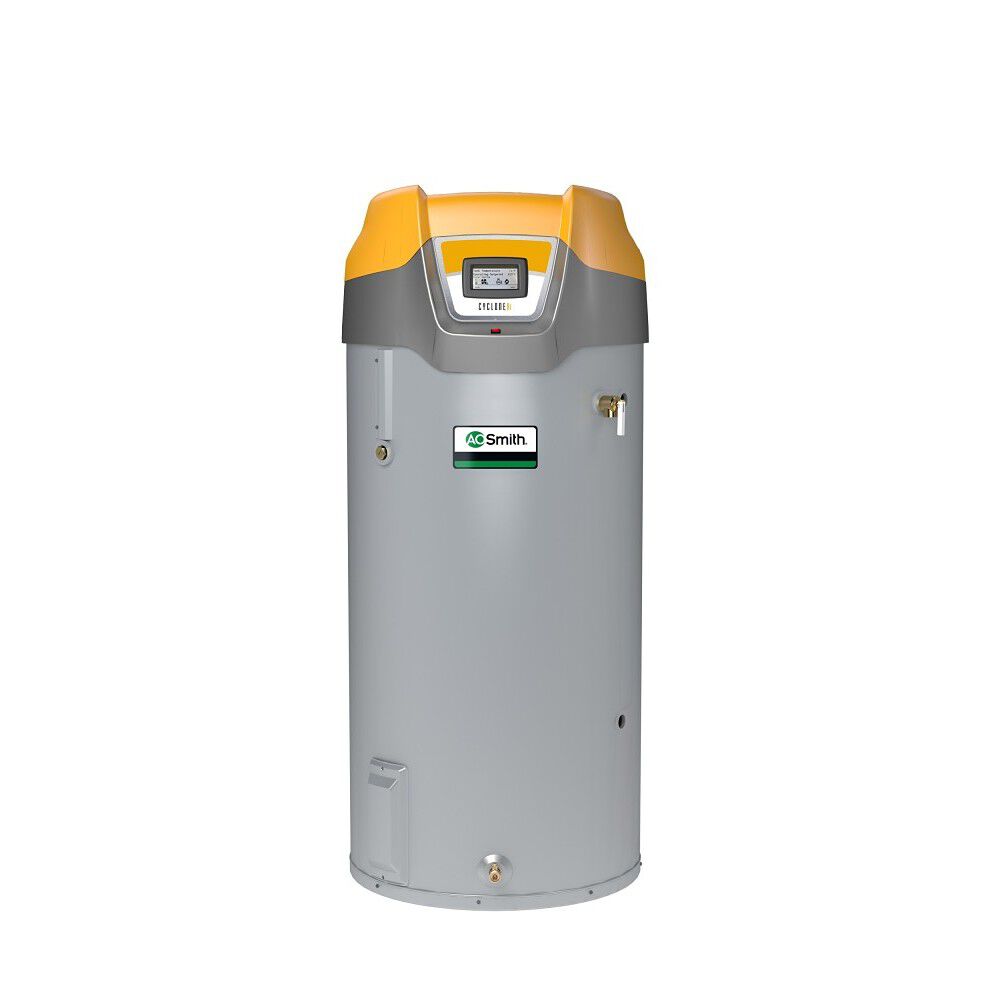

Cyclone® Xi 75-Gallon Power Direct Vent Condensing Commercial Gas Water Heater with Modulating Burner

Model BTXL-100 300
Capacity (Gallons)
Fuel Source
ASME Indicator
Maximum BTU's

  • ENERGY STAR® certified
  • Delivers up to 115 GPH at 100°F Rise
  • Operates at 96% thermal efficiency, which saves money on operating costs compared to a standard 80% efficient gas water heater
  • Product Details
    • ENERGY STAR® certified
    • Delivers up to 115 GPH at 100°F Rise
    • Operates at 96% thermal efficiency, which saves money on operating costs compared to a standard 80% efficient gas water heater
    • Exclusive A. O. Smith designed touch display control system delivers precise temperature control up to 181°F, built-in diagnostics and operational information
    • Spiral heat exchanger keeps hot combustion gases in the tank longer to lengthen the heat transfer cycle & reduces scale formation on the heat exchanger
    • Combined vertical and horizontal runs terminating through the roof or an outside wall vents using PVC, CPVC or polypropylene piping
    • Side-mounted hot and cold recirculating taps allows Cyclone® Xi to be installed as part of combination space heating/water heating pplications
    • Top-fired Ultra Low NOx gas burner complies with SCAQMD Rule 1146.2 and other Air Quality Management Districts with similar requirements
    • Blue Diamond® glass-lining and CoreGard® anode rod provide superior corrosion resistance
    • 3-year limited tank / 1-year limited parts warranty

    • The Cyclone® Xi is a light-duty, power direct vent, fully condensing commercial gas water heater with an internal helical heat exchanger. This helical heat exchanger helps Cyclone Xi achieve 96% thermal efficiency and deliver outstanding hot water output. BTXL-100 uses up to 100,000 BTU/h of gas to deliver 115 GPH at 100 rise. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    75 Gallons
    Rated Storage Volume
    73.7 Gallons
    Thermal Efficiency
    96%
    Maximum BTUs
    100,000
    Power Source
    GAS
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    BOTH
    ASME Certified
    No
    Amperes
    5
    Destination Country
    US
    Digital Display
    true
    ENERGY STAR® Certified
    true
    Fuel Source
    NATURAL
    Installation Type
    INDOOR
    Recovery Rise at 90°F
    129
    Shipping Height
    74"
    Shipping Length
    36"
    Shipping Width
    34.5"
    Side Loop
    Yes
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Diameter
    27.75 in."
    Shipping Weight
    382lbs
    Vent Type
    Power Direct Vent
