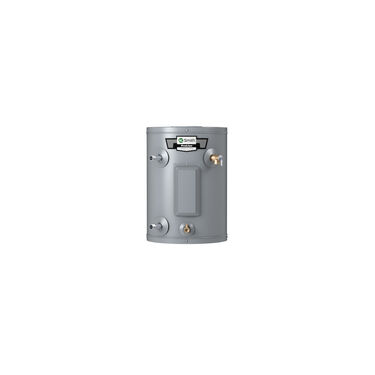

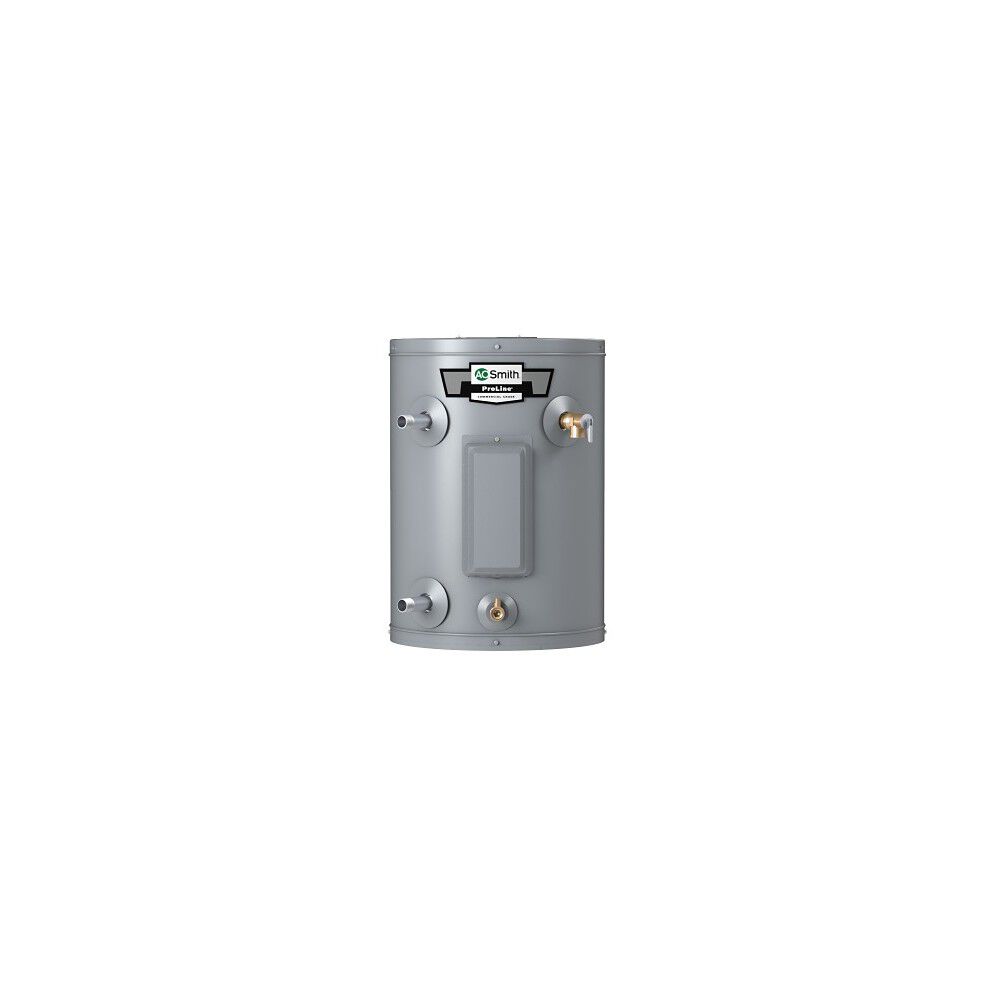

ProLine® 10-Gallon Specialty Compact Electric Water Heater

Model EJC-10 200
4.8 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 15ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Max Wattage

  • Delivers 8-gallons per hour recovery rate
  • Single 1,650-watt commercial-grade heating element delivers reliable and efficient hot water
  • Compact design side connections is ideal for installation under a counter, in a crawl space or in other tight spaces

    • Find a Local Pro
    Product Details
    • Delivers 8-gallons per hour recovery rate
    • Single 1,650-watt commercial-grade heating element delivers reliable and efficient hot water
    • Compact design side connections is ideal for installation under a counter, in a crawl space or in other tight spaces
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • DynaClean™ automatic cleaning system protects against sediment build-up
    • Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Commercial-grade brass drain valve for durable and easy operation
    • CSA Certified and ASME Rated T&P Relief Valve, Factory-Installed
    • HUD compliant, approved for mobile homes and manufactured housing
    • 6-year limited tank and parts warranty

      • The ProLine® Compact electric water heater is designed to take up as little room as possible and is the ideal choice for when installation space is limited to tight spaces such as under counters and in crawl spaces. With a 10-gallon (nominal) tank and 1 element delivering 1650 watts, the EJC-10 is designed to fit into tight spaces. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard™ anode rod and Blue Diamond® glass lining, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. All of these features are accompanied by a 6-year limited tank warranty. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    10 Gallons
    Rated Storage Volume
    9 Gallons
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    No
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Height to T&P
    12.25
    Installation Type
    INDOOR
    Max Wattage
    1,650
    Number of Elements
    1
    Application
    RESIDENTIAL
    Product Tier
    ProLine®
    Shipping Height
    19.75"
    Shipping Length
    19.75"
    Shipping Width
    18.5"
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    18.25"
    Diameter
    16 in."
    Width
    16"
    Shipping Weight
    41lbs
    Maintenance & Troubleshooting
    Maintenance

    ProLine® Electric Adjusting the Thermostat

    ProLine® Electric Application and Installation

    ProLine® Electric Checking and Replacing Lower Heating Element.

    ProLine® Electric Checking and Replacing Upper Heating Element.

    ProLine® Electric Not Enough Hot Water

    ProLine® Electric Replacing the Lower Thermostat

    ProLine® Electric Replacing the Upper Thermostat

    Troubleshooting

    ProLine® Electric Tripped ECO

    ProLine® No Hot Water

    Marketing Videos
    ProLine® Electric Features and Benefits
    ProLine® Electric How It Works
